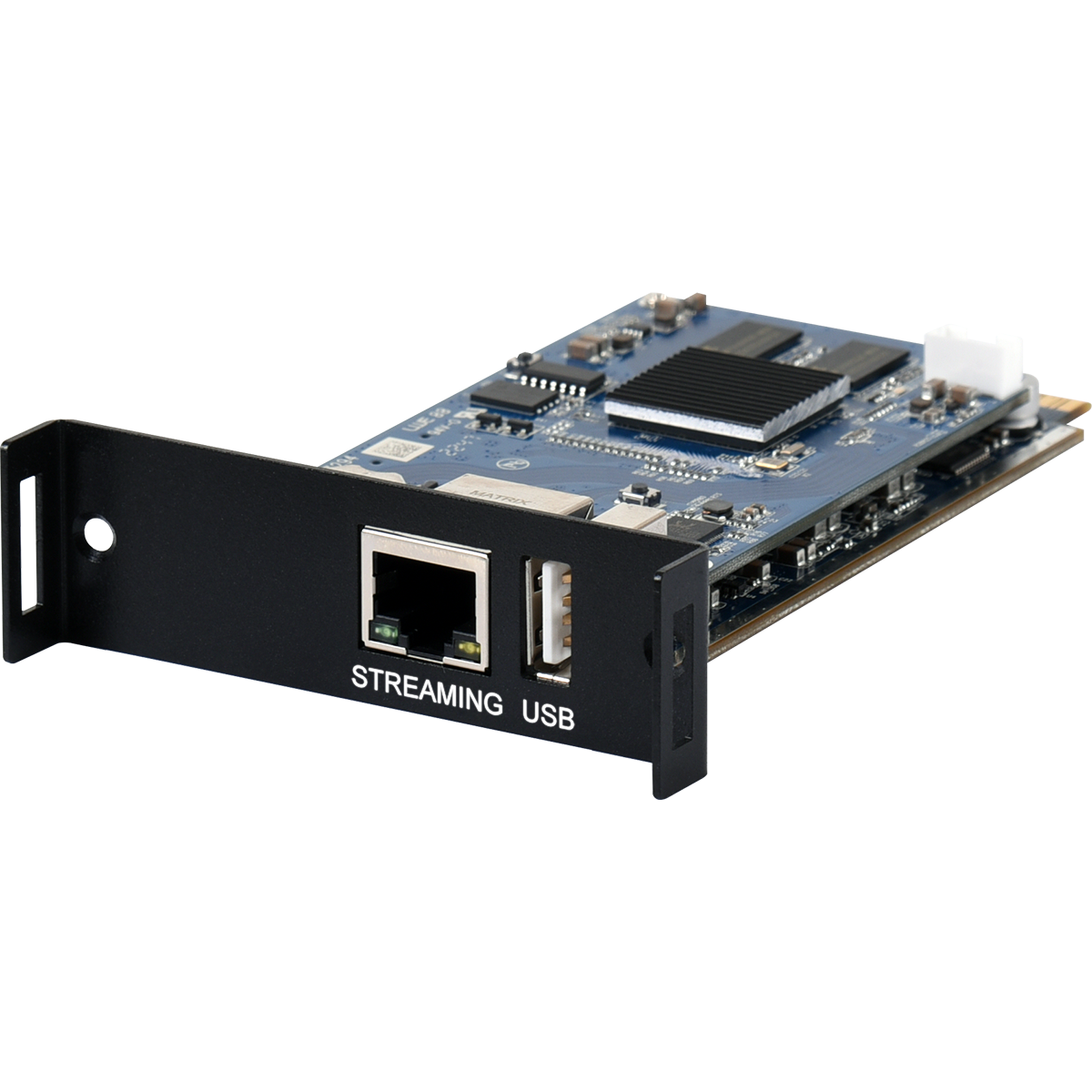

SDM-S100E

H.264/265 Live Video Streaming and Recording Module Card

Supports live streaming on Facebook, YouTube or Twitch channels
4K30 4:4:4 video signal over standard Gigabit Ethernet
Recorded video can be stored locally at connected USB storage (FAT or exFAT format) or to a designated network drive supporting NFS or CIFS

The SDM-S100E module card provides high performance of H.264/265 live video streaming and recording, which transmits 4K30 video signal over standard Gigabit Ethernet. Video output resolution can be up to 4K30; it is a standard quality for streaming. The unit supports RTSP/TCP/UDP/RTMP protocols. All video content is encoded and streamed with minimal latency, making it ideal for live streaming on a variety of popular platforms or within the local network. The video may also be recorded locally (via USB thumb drive) or to a local network drive while it is being streamed.

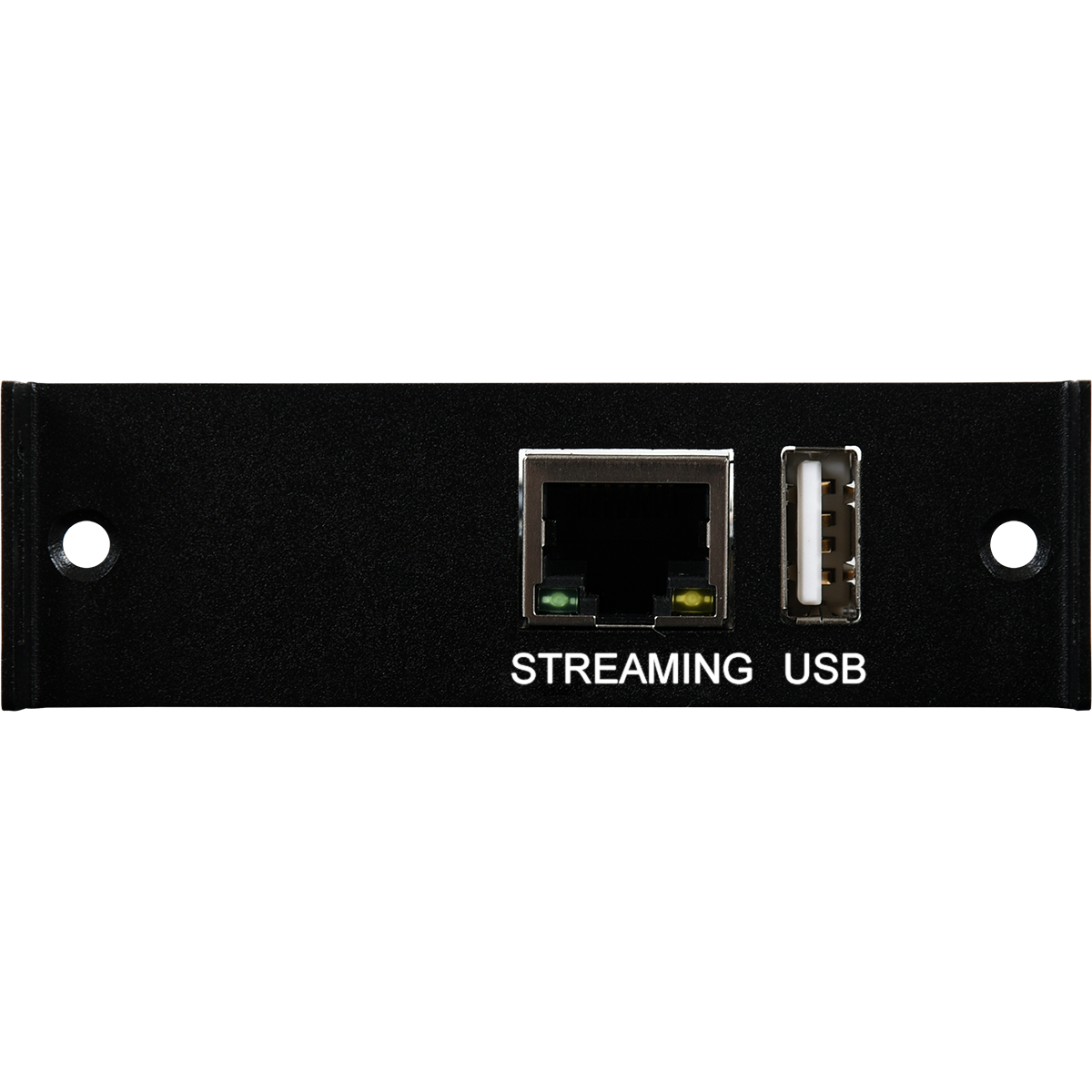

Interfaces
Bi-directional Port	1 GbE LAN (RJ-45)
Control I/O	1 USB (Type-A)

Video
HDMI Compliance	HDMI 2.0
Input Signal Type	4K@30 YUV 4:2:0
Output Signal Type	4K@60 (H.264/265)
Resolutions
Maximum Output	LAN (Streaming)	1920x1080@60

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×75mm×25mm [Case Only] 128mm×79mm×25mm [All Inclusive]
Weight	300g

Field Firmware Update
CSC-VPR-3421

ORDERING INFORMATION

Model No.	Product Description
SDM-S100E	H.264/265 Live Video Streaming and Recording Module Card
SDM-S301E	UHD+ H.264/265 Live Video Streaming and Recording Module Card
CSC-VPR-3421	Multiview Modular Processor

Product Support
Upload Date	File Name	Version	OS	Description	Download
2023/12/25	SDM-S100E-Manual-Ver1.01	1.01	all	SDM-S100E-Manual-Ver1.01
