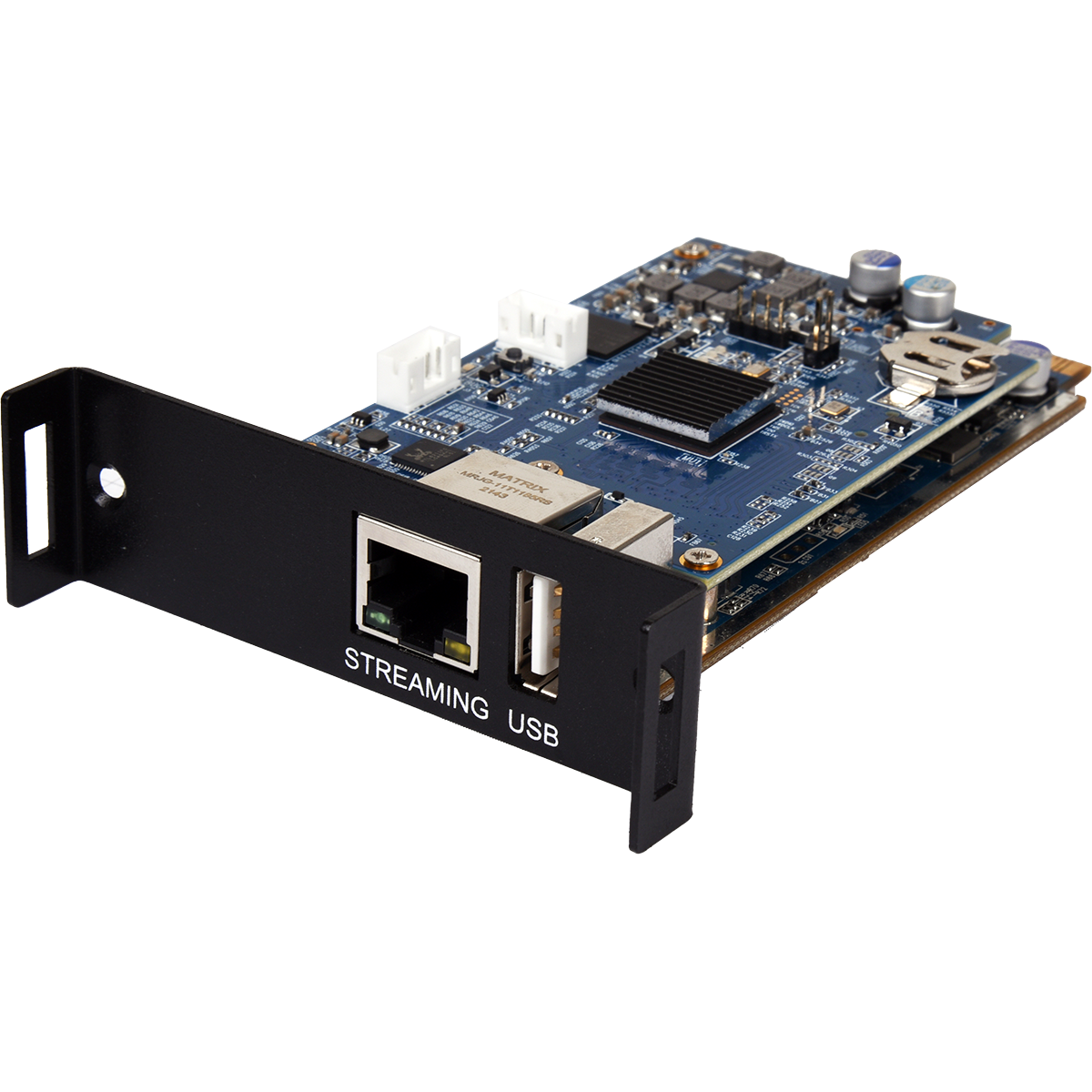

SDM-S301E

H.264/265 Live Video Streaming and Recording Module Card

Integrated support live streaming to Facebook, YouTube or Twitch channels
4K60 4:4:4 video over standard Gigabit Ethernet
Recorded video can be stored at locally connected USB storage (FAT or exFAT format) or to a designated network drive supporting NFS or CIFS

SDM-S301E is a reliable, high-performance H.264/265 Live Video Streaming and Recording module card that transmits 4K60 video signal over standard Gigabit Ethernet. Video output can be up to 4K60 for better quality for streaming. Streaming A/V can be compatible with RTSP/TCP/UDP/RTMP and be streamed on YouTube, Facebook and other platforms instantly and easily. All video content is encoded and streamed with minimal latency and high quality ,making it ideal for live streaming events to a variety of popular online streaming services or within the local network. The video may also be recorded locally (via USB thumb drive) or to a local network drive while it is being streamed.

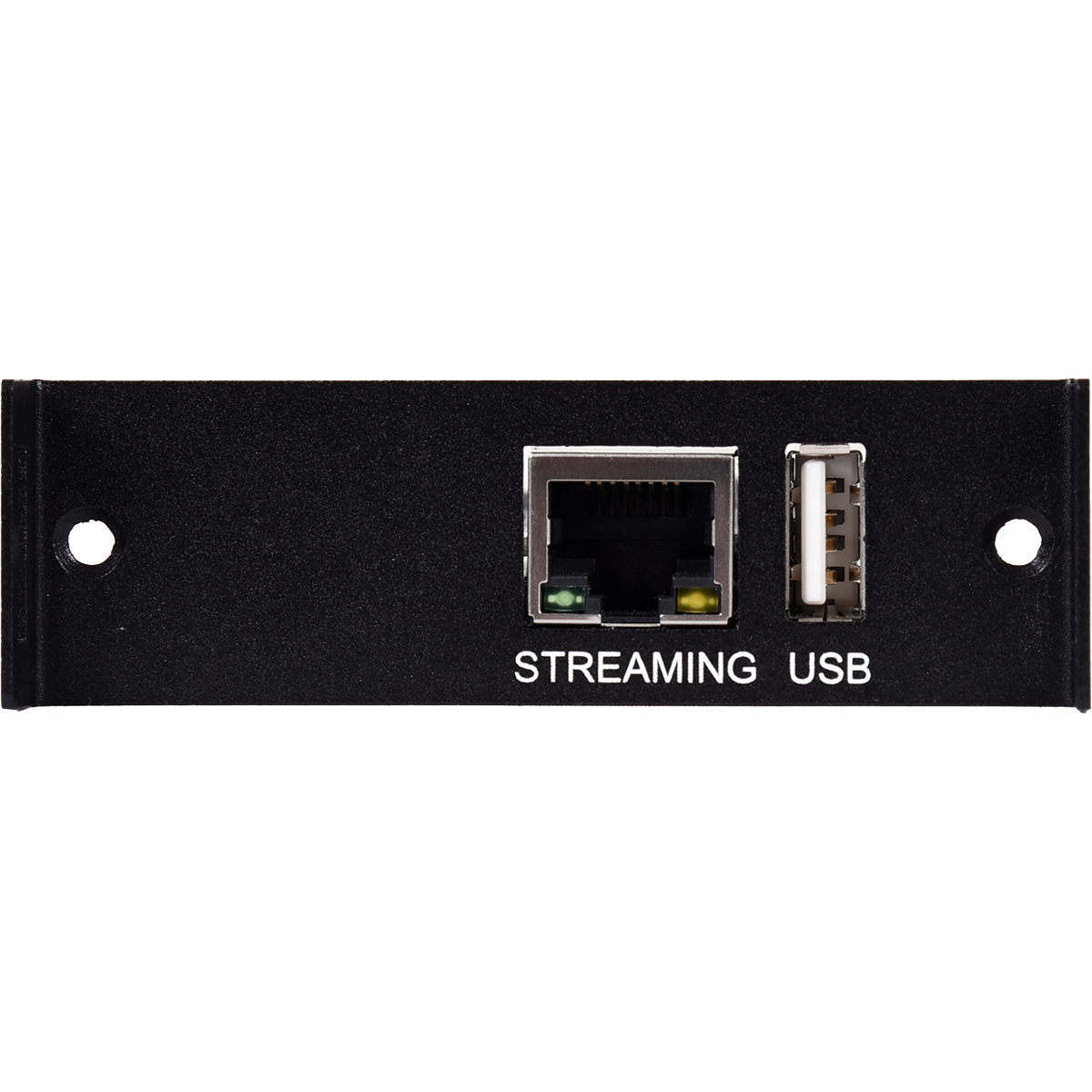

Interfaces
Bi-directional Port	1 GbE LAN (RJ-45)
Control I/O	1 USB (Type-A)

Video
HDMI Compliance	HDMI 2.0
Input Signal Type	4K@60 YUV 4:4:4
Output Signal Type	4K@60 (H.264/265)
Resolutions
Maximum Output	LAN (Streaming)	3840×2160p@60

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×75mm×25mm [Case Only] 128mm×79mm×25mm [All Inclusive]
Weight	300g

Field Firmware Update
CSC-VPR-3421

ORDERING INFORMATION

Model No.	Product Description
SDM-S301E	UHD+ H.264/265 Live Video Streaming and Recording Module Card
CSC-VPR-3421	UHD+ HDMI Mulitview Processor with Multi-Function Extension Slot

Model No.

Product Description

SDM-S301E

UHD+ H.264/265 Live Video Streaming and Recording Module Card

CSC-VPR-3421

UHD+ HDMI Mulitview Processor with Multi-Function

Extension Slot

Product Support
Upload Date	File Name	Version	OS	Description	Download
2023/12/25	SDM-S301E-Manual	1	all	SDM-S301E-Manual
