CDPS-U42HPIP
UHD+ 4×2 HDMI Multiviewer

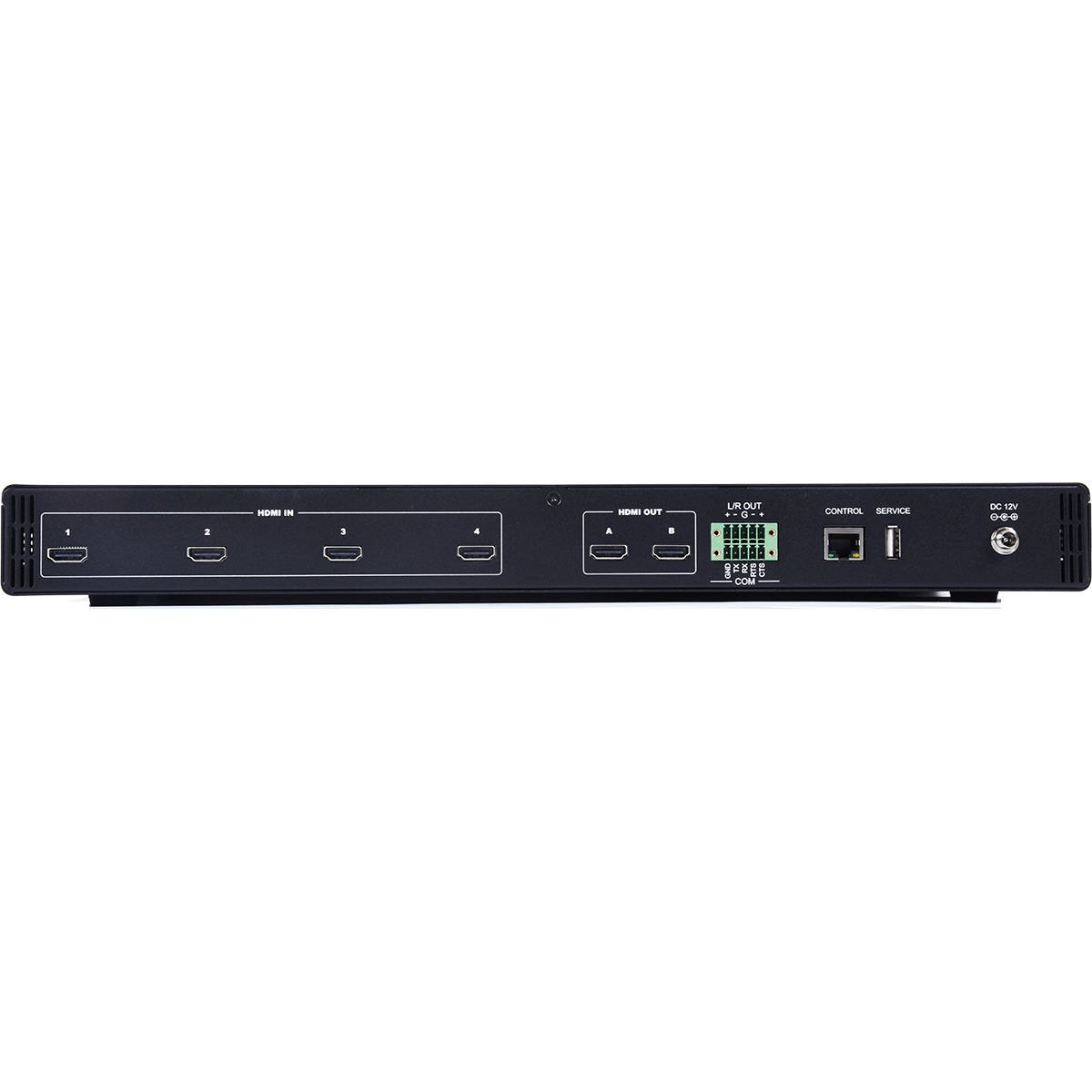

- 4 HDMI inputs and 2 mirrored HDMI outputs
- Seamless switching (no loss of sync to display) when switching sources in both full screen and multi-window modes

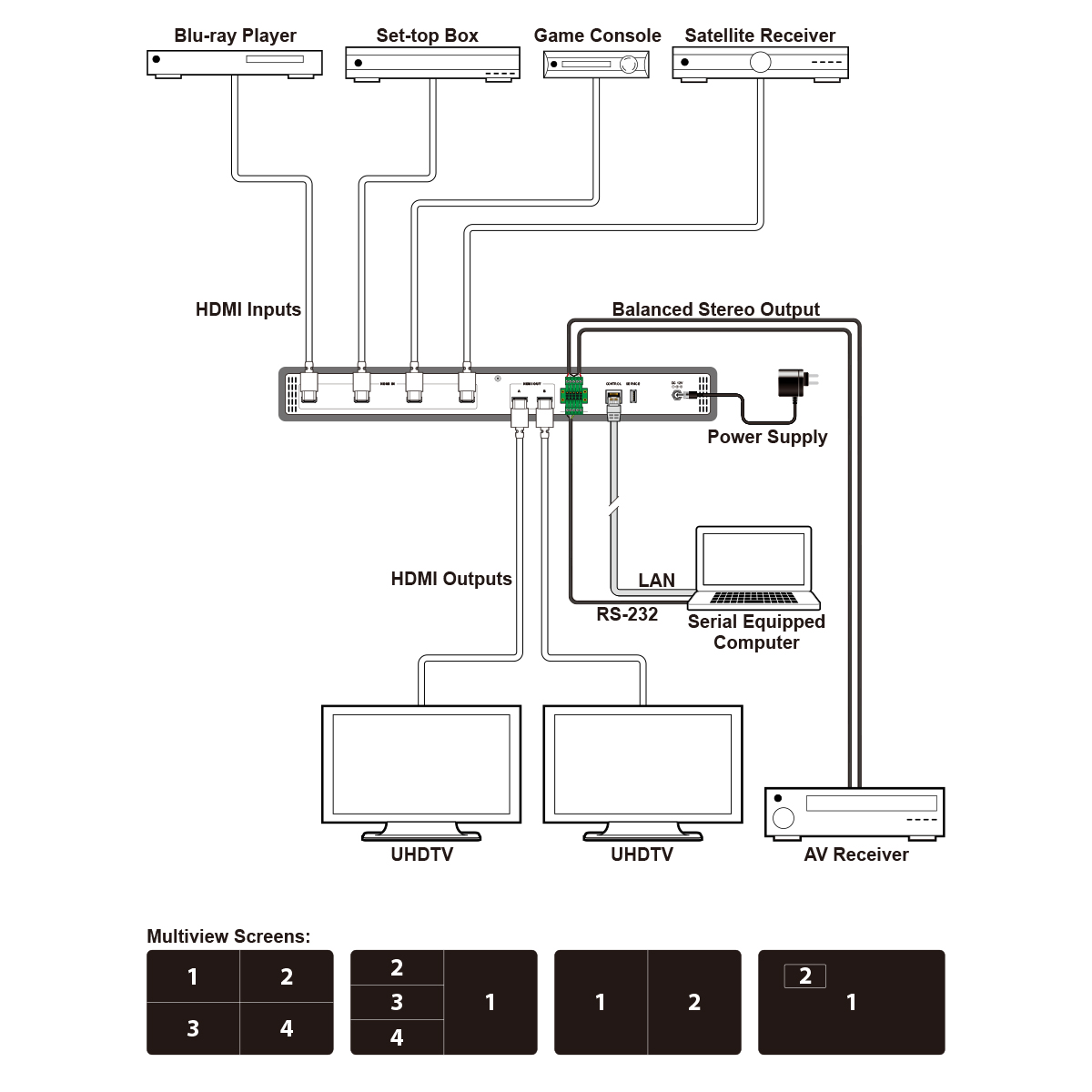

- Supports PiP (Picture-in-Picture), side by side, 3+1 quad view, and 2×2 quad view display options with independent audio source selection Note: 4K@50/60Hz output supports 2×2 Quad View only and is limited to 1080p/4K sources.
- Supports the ability to store a multi-window arrangement as a preset that can be recalled later
- Each window can have a border with a selectable color
- Uploadable and freely positioned graphic logo support Note: The logo and border features are not available when the output is set to 4K@50/60Hz.
- Supports easy adjustment of window size, position and settings in the PiP windowing mode via the WebGUI
- Matrix mode supports input and output resolutions up to 1080p@60Hz with a single shared audio source (Outputs are mirrored at higher resolutions)

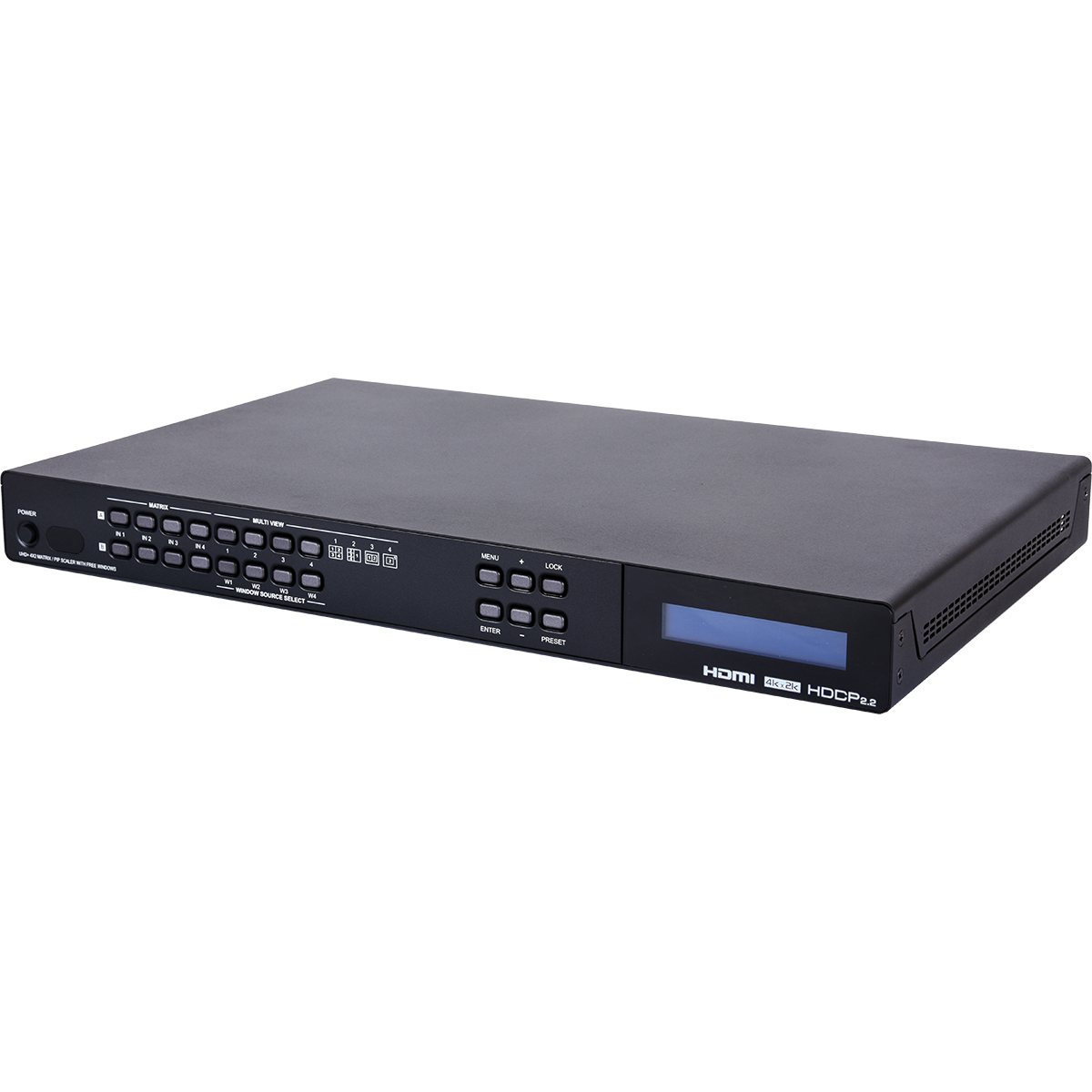

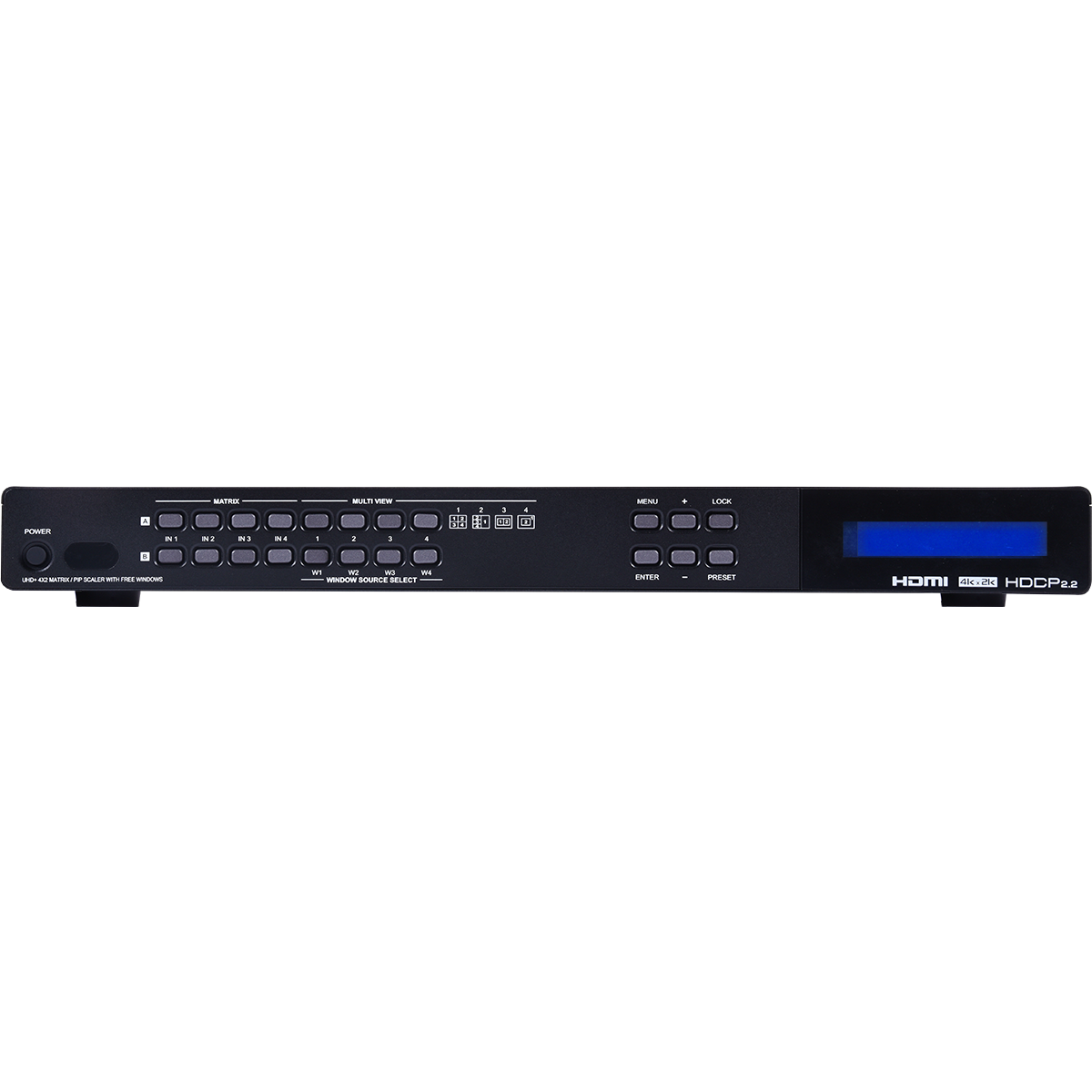

- Controllable via front panel buttons, WebGUI, Telnet, RS-232, and IR remote
