CSC-103TXPL EOL
Replacement Model >CSC-109TX

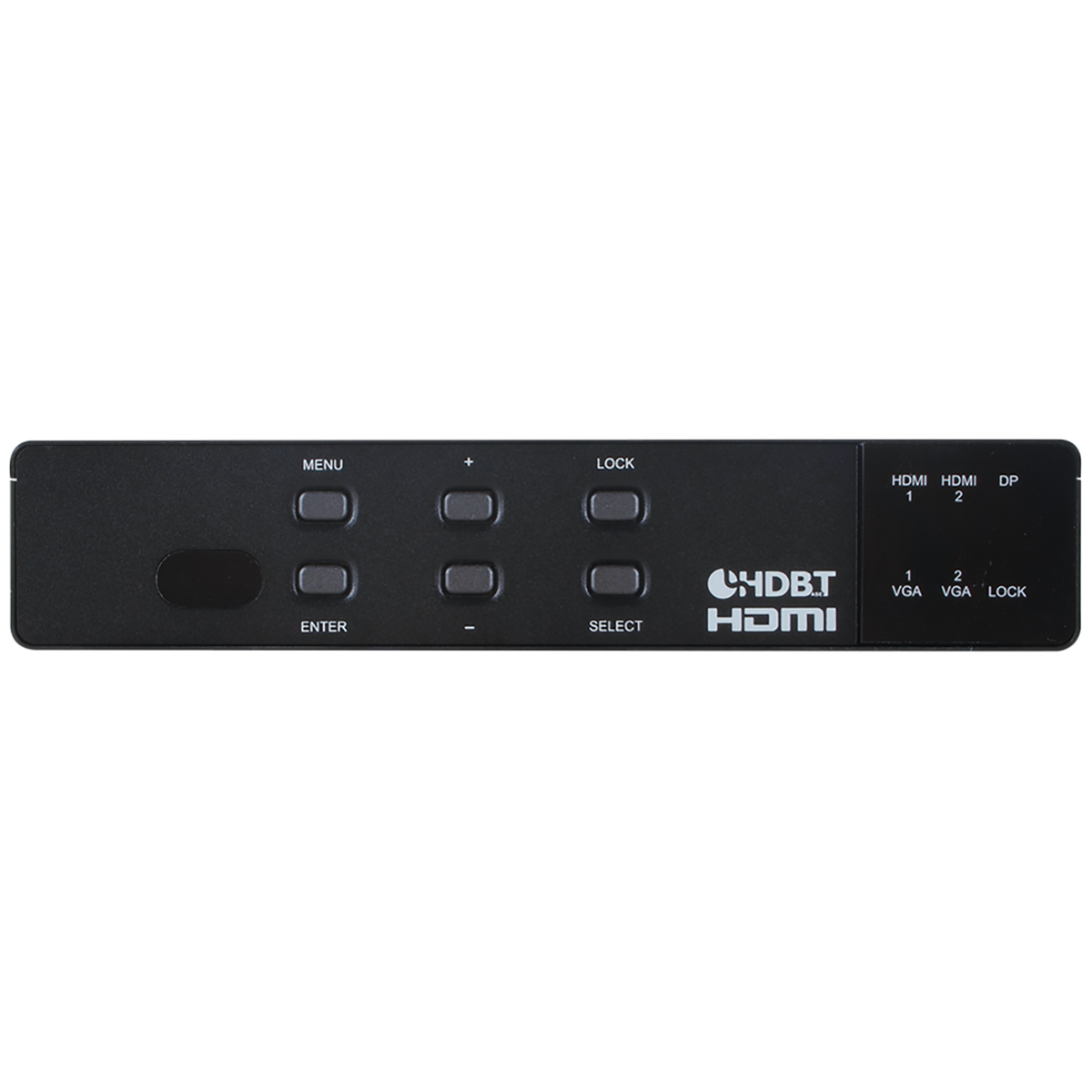

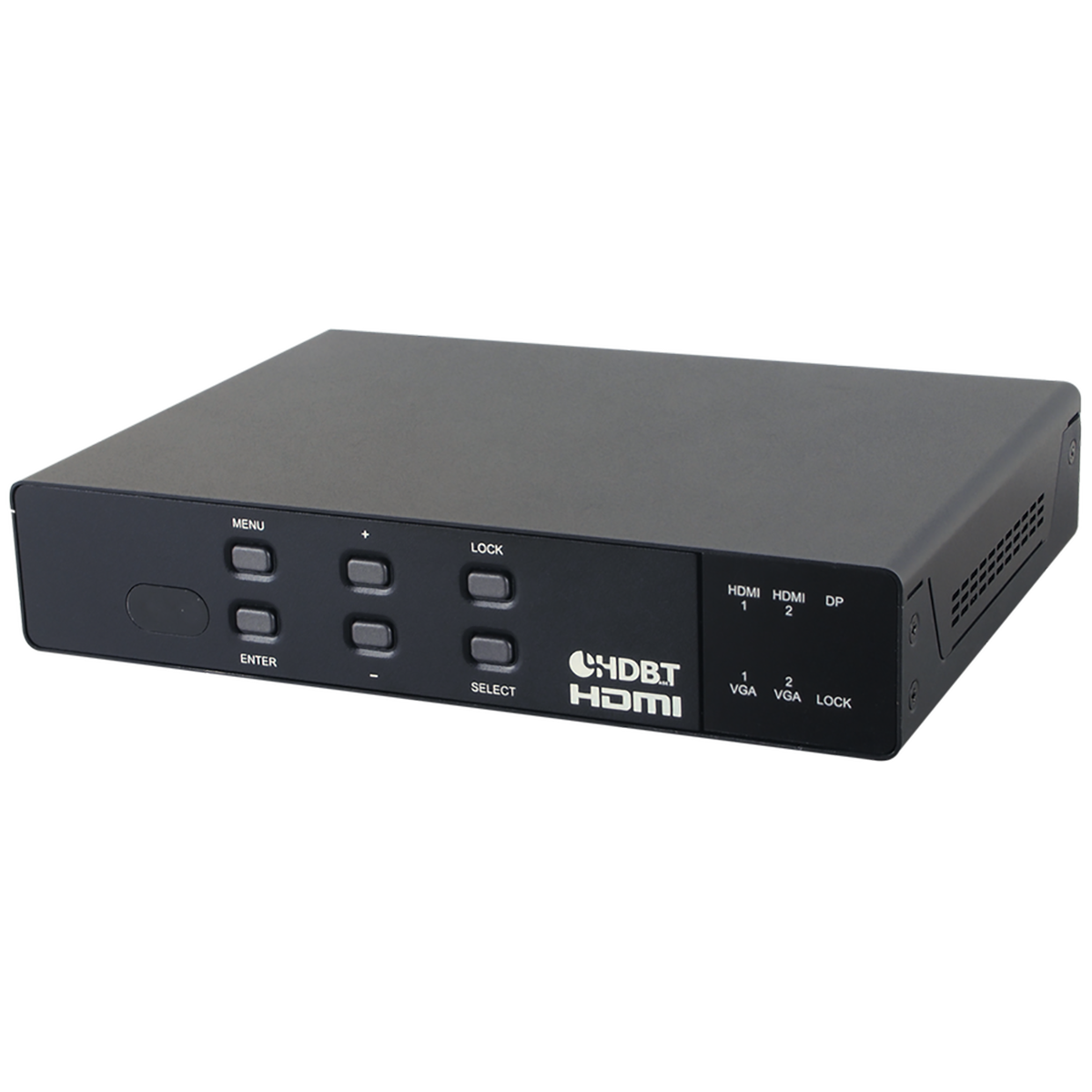

HDMI/DP/VGA to HDMI/HDBaseT Scaler
- HDMI, DVI and DisplayPort compliant
- HDCP 1.4 compliant

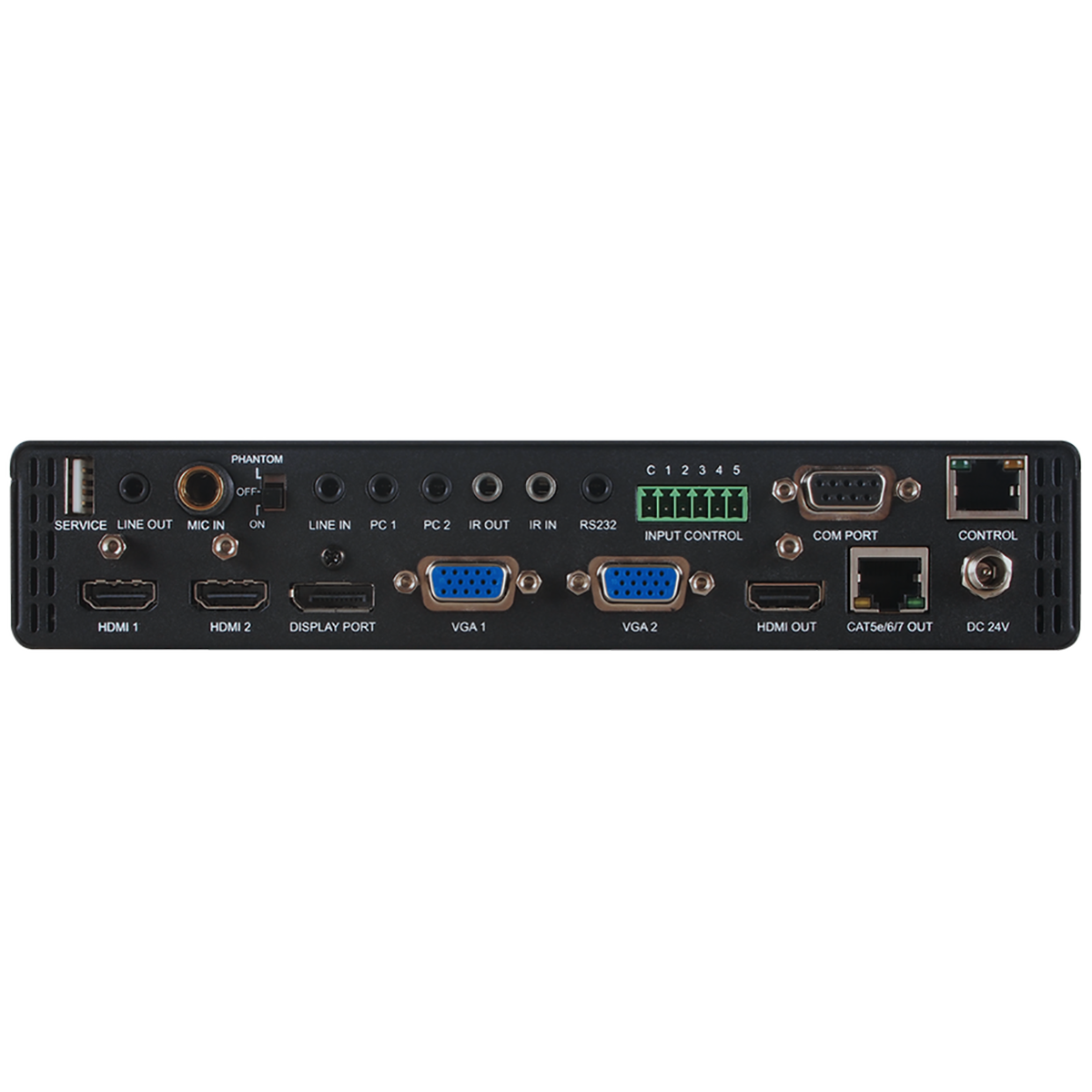

- Multiple video and audio inputs: 2×HDMI, 2×VGA,1×DisplayPort, 3×Unbalanced audio, 1×Mic audio (w/ 48V phantom power option)
- HDMI and HDBaseT outputs (mirrored)
- Inputs support HD resolutions up to 1080p@60Hz and PC resolutions from VGA to WUXGA
- Outputs support resolutions up to 1080p@60Hz
- Supports pass-through of LPCM 2.0 audio
- Audio DSP with auto mixer and gain control for mixing audio and reducing background audio
- HDBaseT feature support: High-Definition video and audio, 24V PoC (Power over Cable) and control (Bi-directional IR & RS-232 pass through)
- HDBaseT output provides 24V PoC to power to compatible HDBaseT Receivers
- EDID management support
- Supports IR In and IR Out to receive or transmit IR signals from compatible Receivers with bi-directional IR
- Remote control provides discrete input source selection
- Supports control via WebGUI, Telnet, IR remote and RS-232
