Installation Sites

Junior High School in Taipei

Customer Requirement

  • Source: one computer and one media player
  • Sink: 3x2 video walls (each with 55-inch screens)
  • Pro AV Device:

                Hyshare x 1: Wireless presentation system

                CH-506TX x 2 & CH-506RX x 2: HDBaseT extenders

                CPLUS-V4H1H x 1: 4K@60 4 in 1 out switcher

                CDPS-CS6 x 1: Control system

                CDPW-K1US x 1: System scenario control panel

  • Extending the signal sources from the second-floor information room and projecting them onto the video wall on the first floor

  • Flexibly switching between various video wall configurations.

    • Teachers can use tablets or smartphones to project and interactively teach students.

    CYP Solution

    Utilizing wireless projection in conjunction with wired audiovisual, enabling stable cross-floor transmission of high-resolution audiovisual content, extended to the TV wall. Users can project directly using handheld tablets, smartphones, and other mobile devices, or switch screens using a control panel for intuitive and flexible operation.

    Product Advantage

    Extending 4K@60 high-resolution stable transmission signal sources to the video wall .

    Wireless projection reduces cable installation and plug-and-play makes it easier and more convenient for users..

    Combining wired transmission with wireless projection provides stable audiovisual transmission.Can use own devices, adding flexibility for projection.

    Through the control panel, users can instantly switch between signal sources and the video wall.

    Supports various video wall configurations, including PiP/Pop/Multiview formats, and allows real-time switching through the control panel.


    More Application

    Medium to large-sized conference rooms, auditoriums.

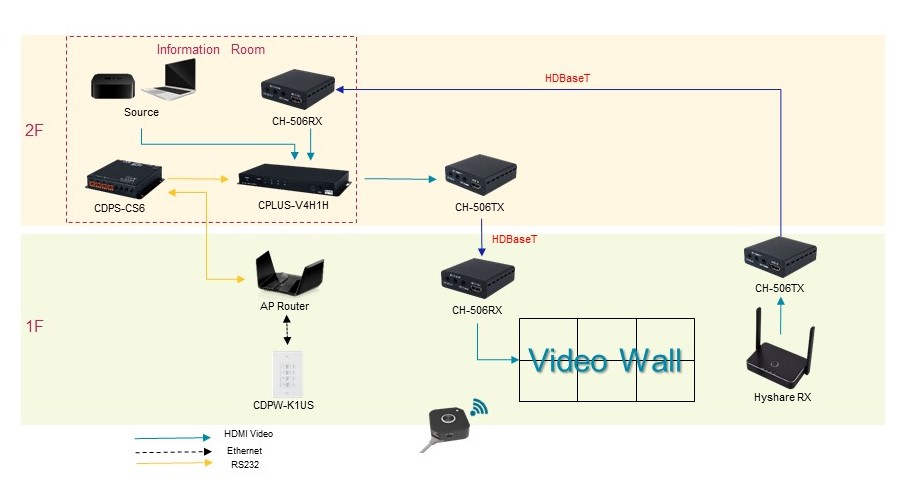

    Connection Diagram


    PRODUCTS FEATURED

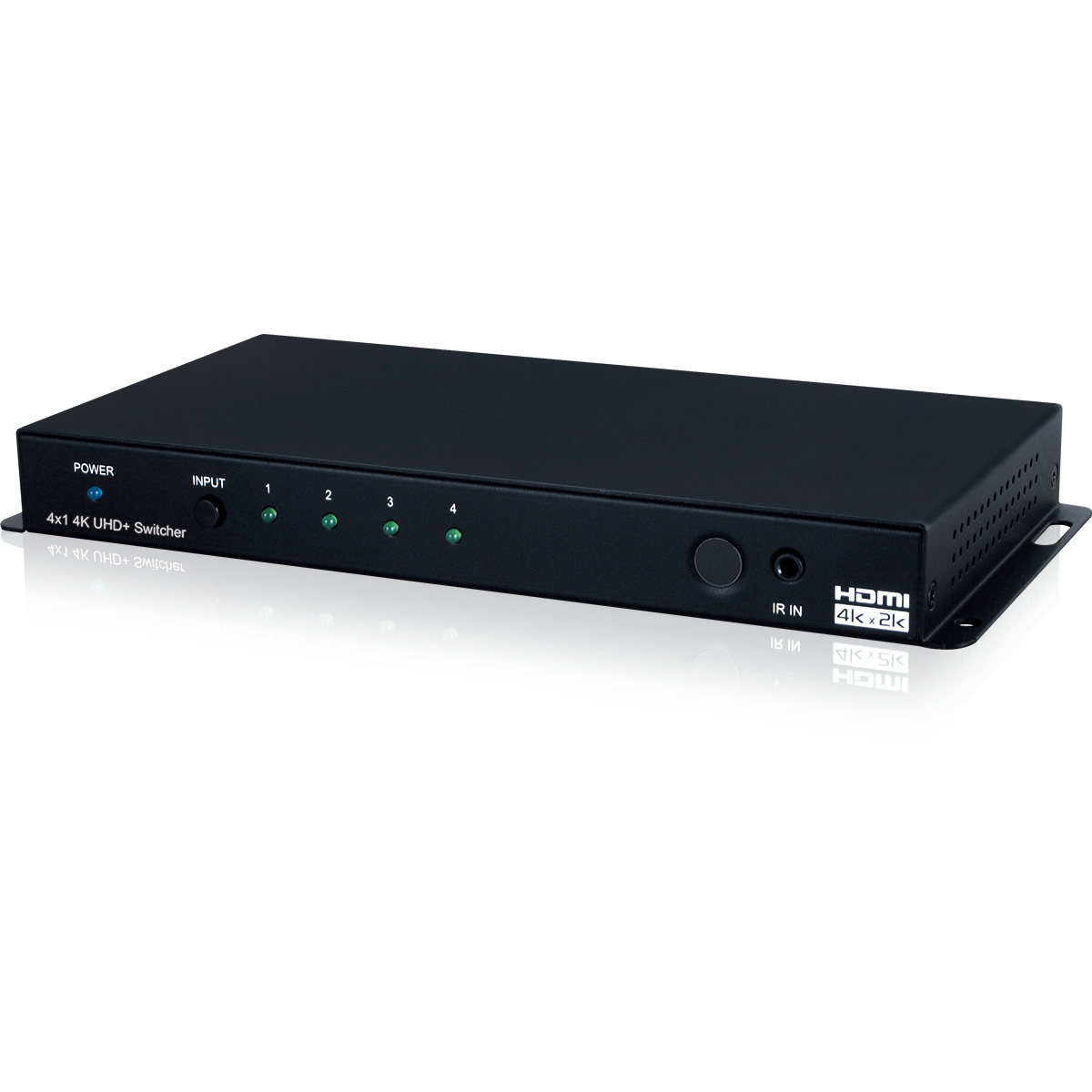

    CPLUS-V4H1H

    4x1 UHD+ Switcher

    This 4 by 1 HDMI Switcher is a brand new high performance design for the next generation of audio/video equipment. It allows a single HDMI output to switch between 4 HDMI sources. This unit comes with full support for 18Gbps (600Mhz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 16-bit Deep Color up to 1080p60Hz, HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0 specification. The included auto switching functionality allows for the possibility of hands-free, user friendly, operation. Control is provided via front panel buttons, IR remote, and RS-232

    CH-506TX

    HDMI over CAT5e/6/7 Transmitter

    ​This HDBaseT™ HDMI over Single CAT5e/6/7 Transmitter and Receiver Set can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100m (1080p) and has the added benefit of control through the built-in RS-232 and 2-way IR.

    CH-506RX

    HDMI over CAT5e/6/7 Receiver

    ​This HDBaseT™ HDMI over Single CAT5e/6/7 Transmitter and Receiver Set can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100m (1080p) and has the added benefit of control through the built-in RS-232 and 2-way IR.

    WPS-QPM01

    Hyshare Wireless Presentation System (Support up to 4 Spilt Screens)

    Hyshare is a high-performance Wireless Presentation System. It is the mainstream model of the Hyshare product family. Although it is tiny, it still comes with powerful dual-core SoC and advanced 802.11ac 5GHz Wi-Fi to provide you a smooth wireless display experience. By keeping the USB type A connection, it can support both iOS and Android platforms and mirror over USB without any apps needed. It also supports ‘’Split Screens Display”, “Host Control System”, touch reverse control over USB and USB HID to provide a more friendly and efficient environment for BYOD (Bring Your Own Devices) events you need!

    CDPS-CS6

    Control System Center

    This Control System Center is ideal for a user who has a wide variety of devices that need to be controlled. It comes with eight external trigger connections which directly activate 8 (of 16 total) user defined macro events stored within the unit. All 16 macros are available to be activated via the WebGUI, or by Telnet. Those user defined macros can send commands to remote devices via Ethernet, IR (×4), relay trigger (×4), or RS-232/422/485 (×1) allowing for the control of a large array of devices at the push of a button. An integrated IR code learning function is also available, allowing the user to store and re-transmit the IR codes sent by nearly any standard IR remote. Comprehensive user control interfaces are available including WebGUI, Telnet and console (RS-232 in). Last but not least, this unit supports Power over Ethernet (PoE) allowing it to be powered directly from a standard PoE network switch, without the need for an external power adapter, allowing for incredible installation flexibility.

    CDPW-K1US

    8-Button Control Keypad

    These keypads are versatile and useful products for both system integrators and smart home users alike. These keypads can send commands to any Ethernet controlled or relay controllable device in your system. With up to 16 physical macro buttons and up to an additional 48 software macro buttons (8 physical and 24 software buttons on the 1 gang version) you can pre-program and recall up to 64 (32 on the 1 gang version) distinct macros providing for complete control over your audio and video environment. The soft and colorful LED buttons are suitable for all environments and PoE (Power over Ethernet) support allows for creative placement of the keypad within your space without needing to be concerned about keeping it near a live power source. Additionally, the integrated clock and calendar based scheduling feature allows you to trigger macros to control devices within your installation at a specific time, or on a recurring schedule
