Installation Sites

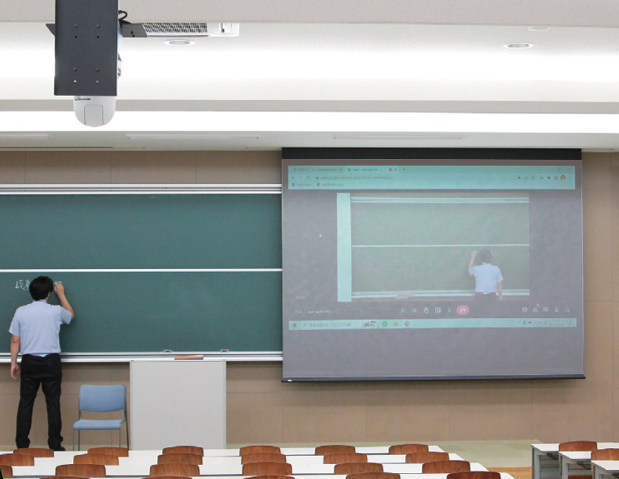

40 classrooms at Gifu Shotoku Gakuen University in Japan
Installation Requirements

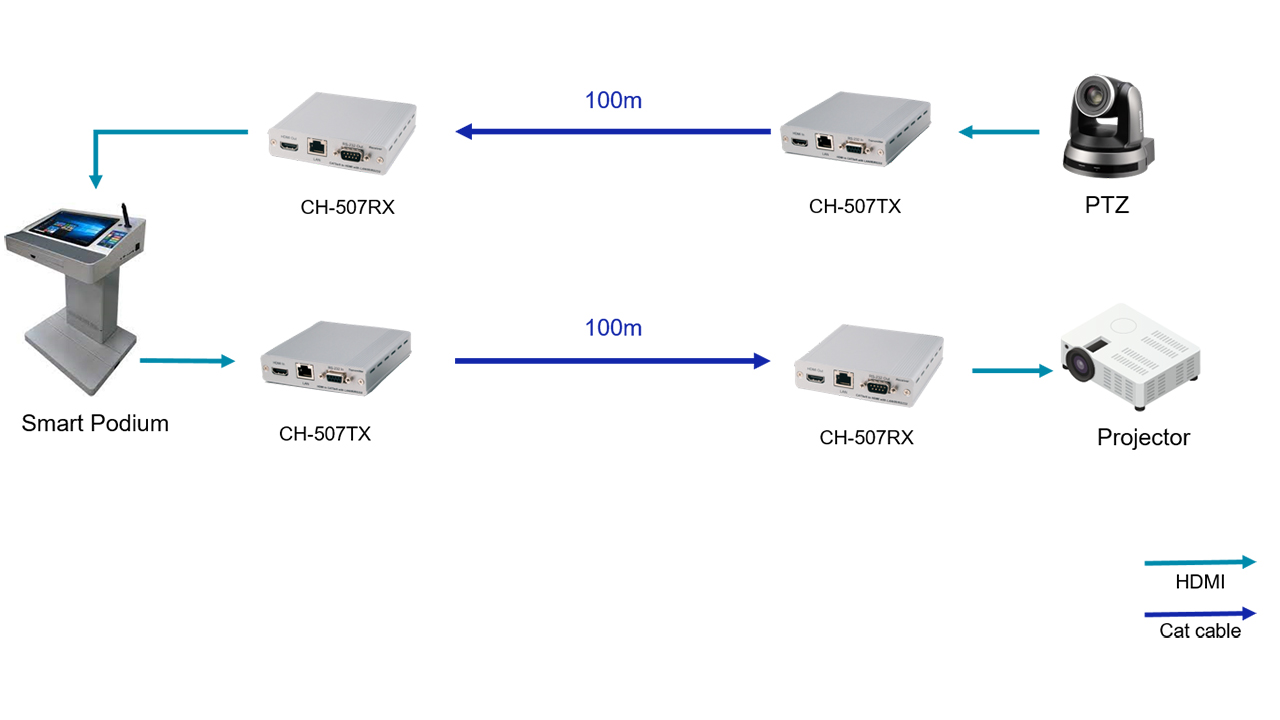

- Extend signals from the classroom’s rear camera to the podium computer.
- Transmit high-quality real-time video
- Remote control a camera located 10 meters away to adjust it to the best viewing angle for teaching

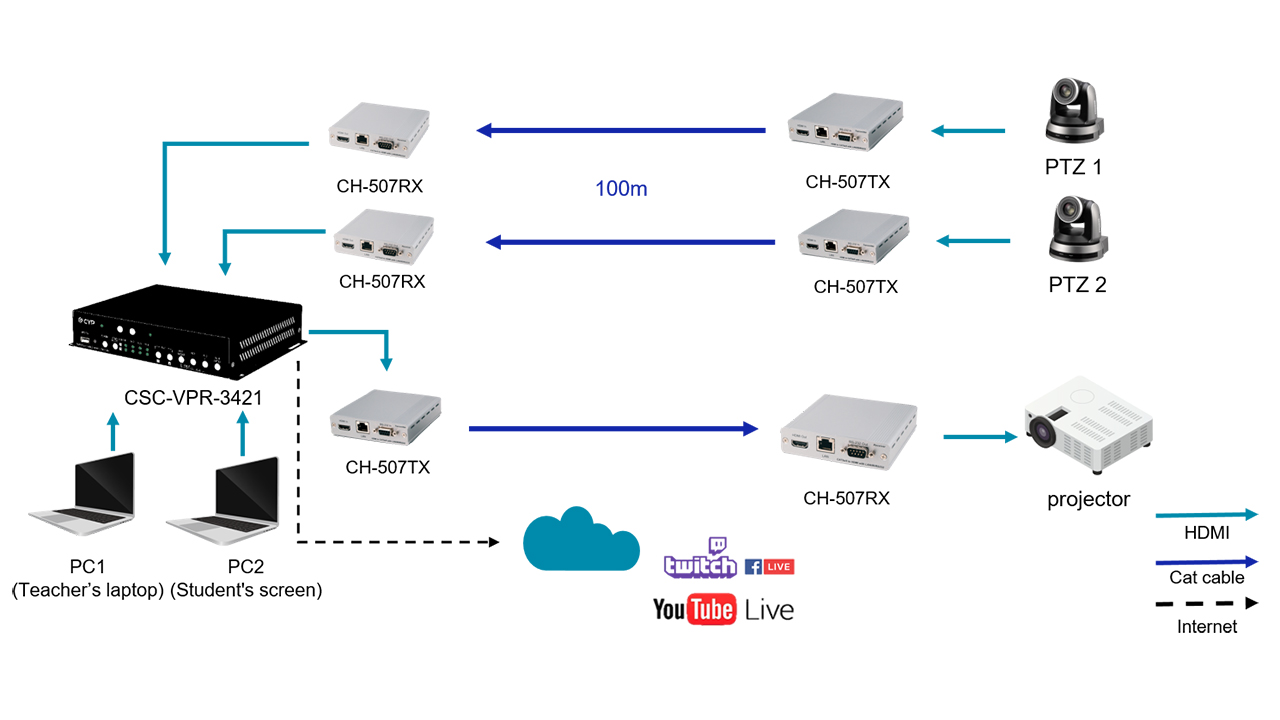

- Stream real-time video from the classroom to online students

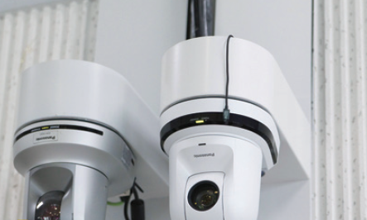

- Audiovisual Source：PTZ (Pan-Tilt-Zoom) Camera
- Sink Device: Projector
CYP Pro AV Advantage

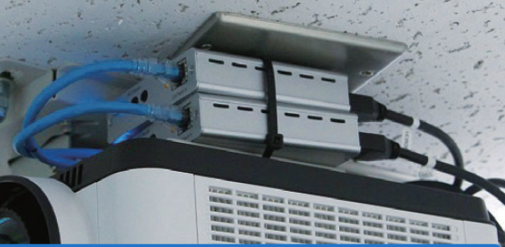

- Signal transmission through a single network cable avoids complicated wiring and reduces installation costs
- The signal also provides remote control capabilities, such as infrared
- High compatibility makes integration with existing environmental control systems more convenient
CH-507TX
HDMI over CAT5e/6/7 Transmitter with 24V PoC and LAN Serving
The CH-507TX & RX set allows uncompressed HDMI™ signals and IP data to be transmitted over a single CAT5e/6/7 cable. This solution has the added features of built-in RS-232, 2-way IR control and Power over Ethernet all over the single CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 meters.
CH-507RX
HDMI over CAT5e/6/7 Receiver with 24V PoC and LAN Serving
The CH-507TX & RX set allows uncompressed HDMI™ signals and IP data to be transmitted over a single CAT5e/6/7 cable. This solution has the added features of built-in RS-232, 2-way IR control and Power over Ethernet all over the single CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 meters.
CSC-VPR-3421
Multiview Modular Processor
CSC-VPR-3421 is a wonderful solution for streaming, because it offers more than streaming and recording functionality but also offers rich video processing functions. It makes online broadcasting of live video an easy and simple process. Video content up to 4K UHD+ is supported and is automatically scaled to a resolution that is more appropriate for efficient streaming. Both HDMI and VGA inputs are supported. An HDMI output is provided for local monitoring. An audio mixer function is included, allowing an external audio source to be mixed with the embedded audio of your HDMI source (LPCM 2.0 only) for your video stream. Comprehensive EDID management, intuitive WebGUI, and adjustable Audio functions make this unit a terrific tool for video streaming and recording. Besides high performance HDMI switch with integrated scaling, multi-windowing technology, multi-view and streaming are also supported. Any of 4 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including quad mode PiP, and PoP mode, which becomes splendid source for streaming.
CDPS-CS9
Universal Device Controller
This controller is a powerful and flexible solution for controlling all active units within same network. The user only needs to install this unit into the same local network to easily define and configure channel routing selections using the WebGUI. Not only could about to check all the units status that under controller’s control, it also able to define and switch routes, allowing for easy control over multiple video zones.
