Installation Place

  • Asia University, Taiwan

Installation Requirement

  • Source: 1 of teacher’s  laptop and 1 of camera for interior design mold
  • Sink: 1 of Projector
  • Streaming box: 1 unit (model: MED-VPR-3420)
  • To display teacher’s presentation PowerPoint and interior design mold in one display and also integrate with Zoom for grouping discussion

Product Advantage

  • Flexibility window layout: PiP/PoP/Quad View to easily integrate multi sources in one display
  • Streaming Ultra HD content and sharing on Zoom, Popular streaming platform supported eg. Zoom, Teams and so on to allow more people join the conference
  • Support recording to SD card, USB hard disk and NAS while streaming

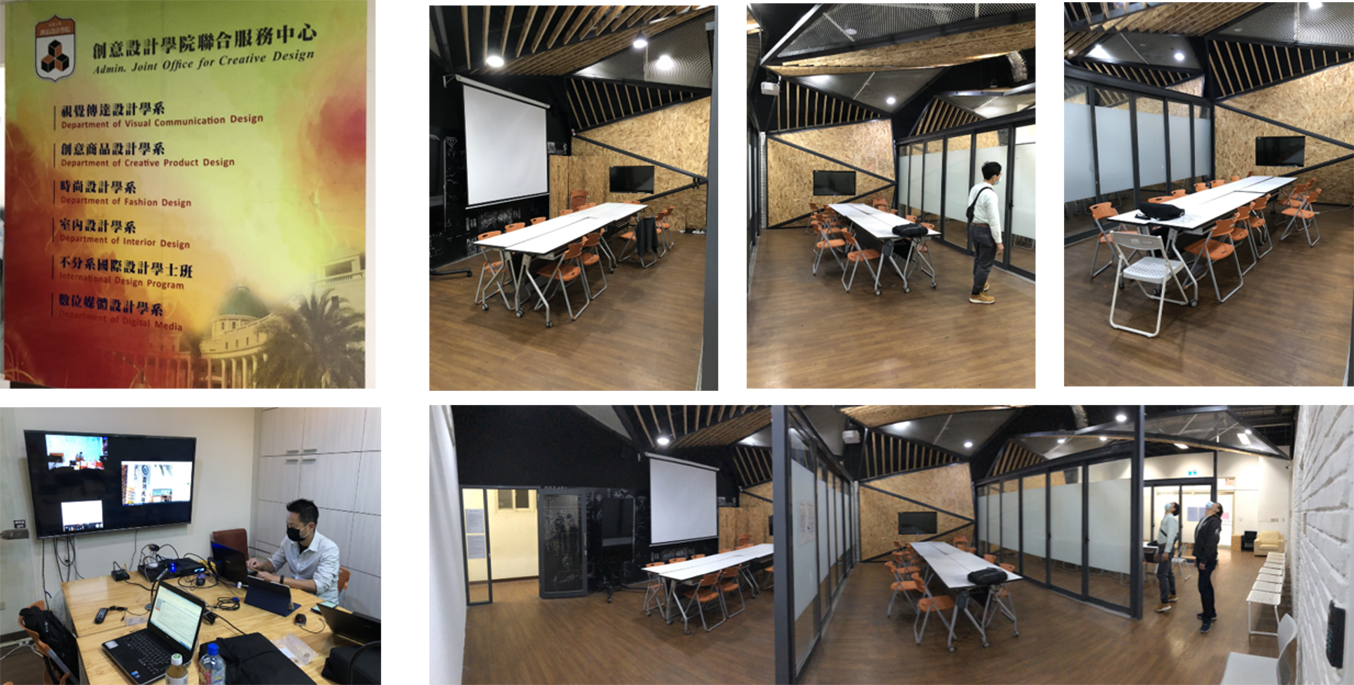

Installation Site – Department of Interior Design

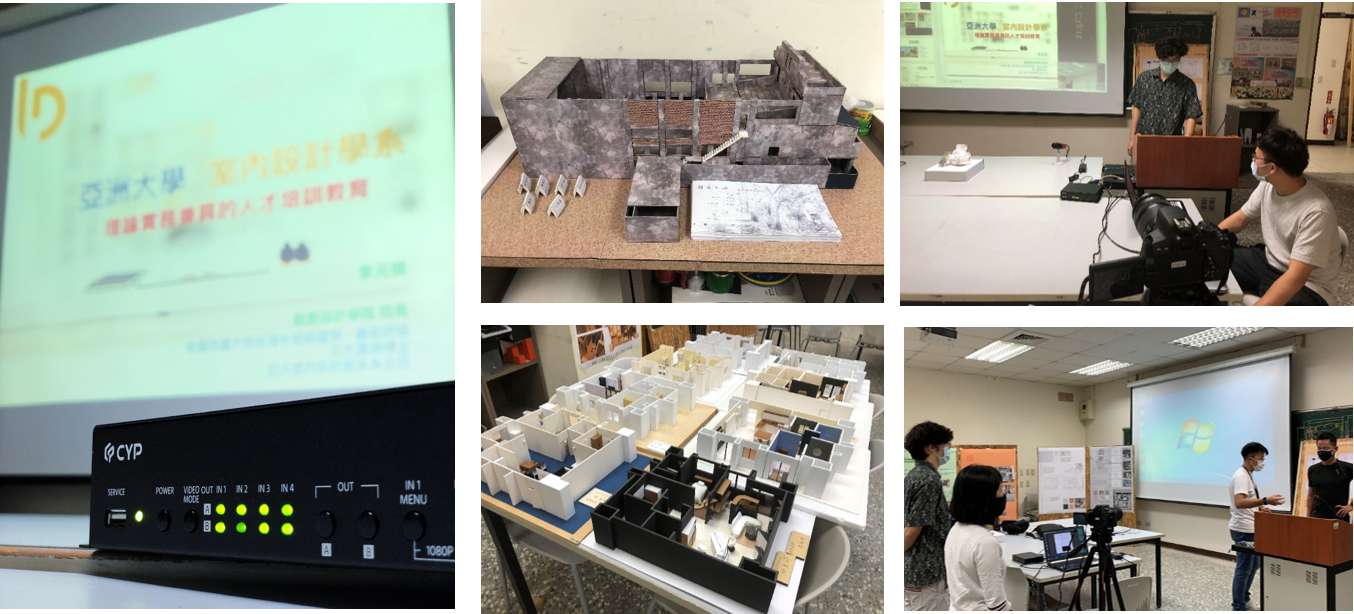

Installation Site – Department of Interior Design


Connection Diagram



PRODUCTS FEATURED

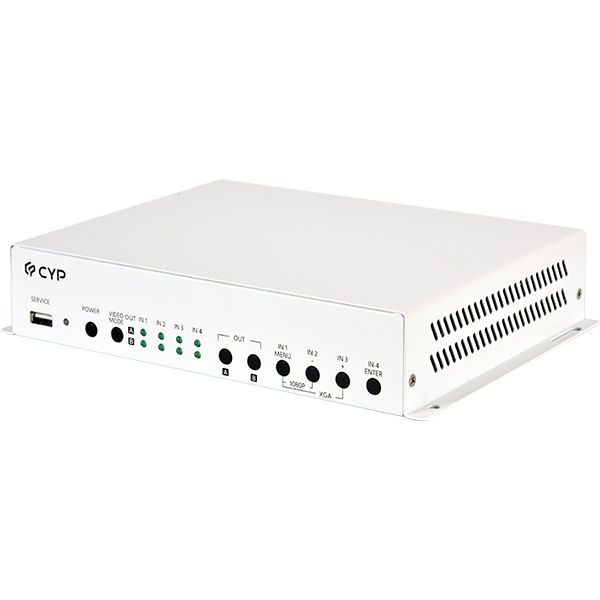

MED-VPR-3420

Multi-View with Streaming Solution for Video Conference

Video conference is important and convenient to communicate people in distance. If you want to express your thought clearly by sharing varied and rich images, an integrated machine with multi-view and video capture functions is a splendid idea. MED-VPR-3420 is the one to meet your requirement. Besides high performance HDMI switch with integrated scaling, multi-windowing technology, multi-view and video capture function are also supported. Any of 4 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including quad mode PiP , and PoP mode.
