CDVI-1109TXC

CDVI-1109TXC EOL

DVI over CAT5e/6/7 Transmitter with 24V PoC and 2 LAN Serving

Supports 3D formats and 4K2K resolution with HDMI to DVI adaptor
Simultaneous transmission of uncompressed video and audio (1080p@60Hz/Deep Color) over a single CAT5e/6/7 cable up to 100m
Supports High-definition Audio formats (up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio)
Connect and share up to 4 LAN connections (2 at the receiver end, 2 at the Transmitter end) at speeds up to 100Mbps
Supports bi-directional IR control and RS-232 pass-through
Full 5Play™ convergence: Video, Audio, LAN serving, Power over Cable (PoC) and Control (IR & RS-232 bypass)
Single power supply powers both units, Receiver unit is powered through the Transmitter via PoE
Installation friendly

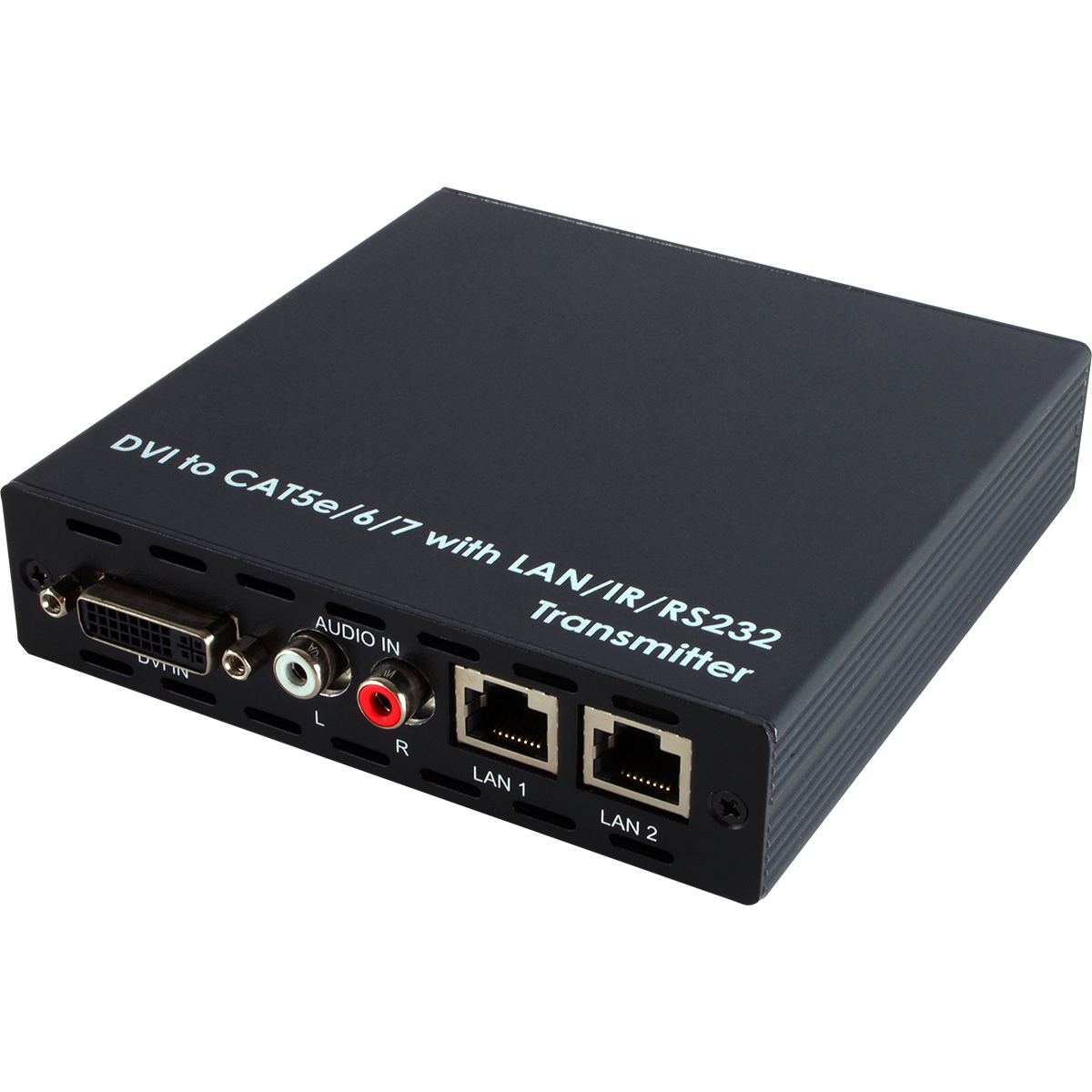

This HDBaseT DVI over CAT5e/6/7 transmitter and receiver set can transmit DVI video, analog audio, 2 LAN serving connections, control (RS-232 and IR) and Power over Cable (PoC) over a single CAT5e/6/7 cable up to 100m. The transmitter can power the receiver, via the PoE function, eliminating the need for a separate power supply providing greater flexibility in installations.

Video Bandwidth	340 MHz/10.2 Gbps
Ethernet Speed	100 Mbps
Transmitter

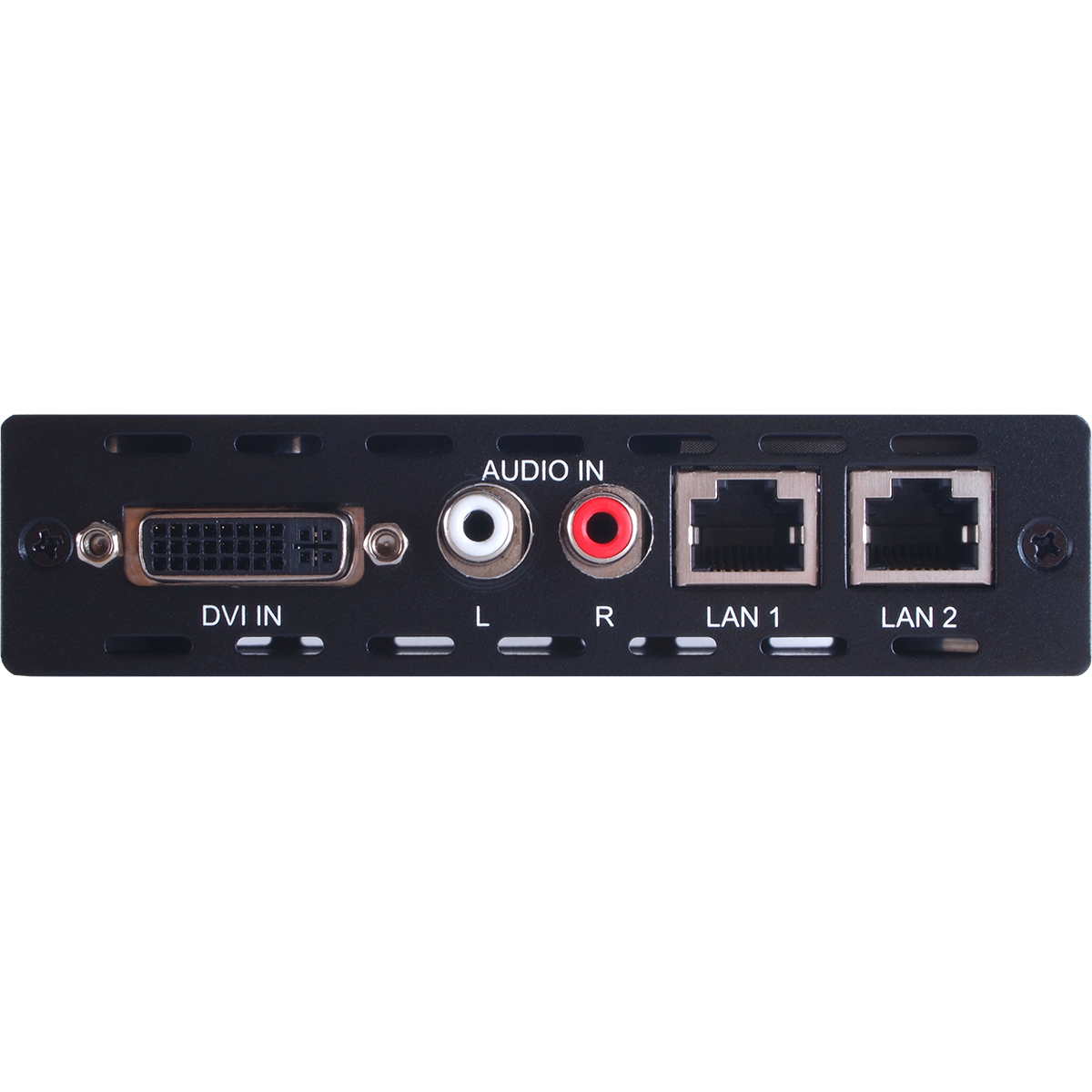

Inputs	1×DVI , 2×Ethernet, 1 x L/R 1×RS-232, 1×IR Extender

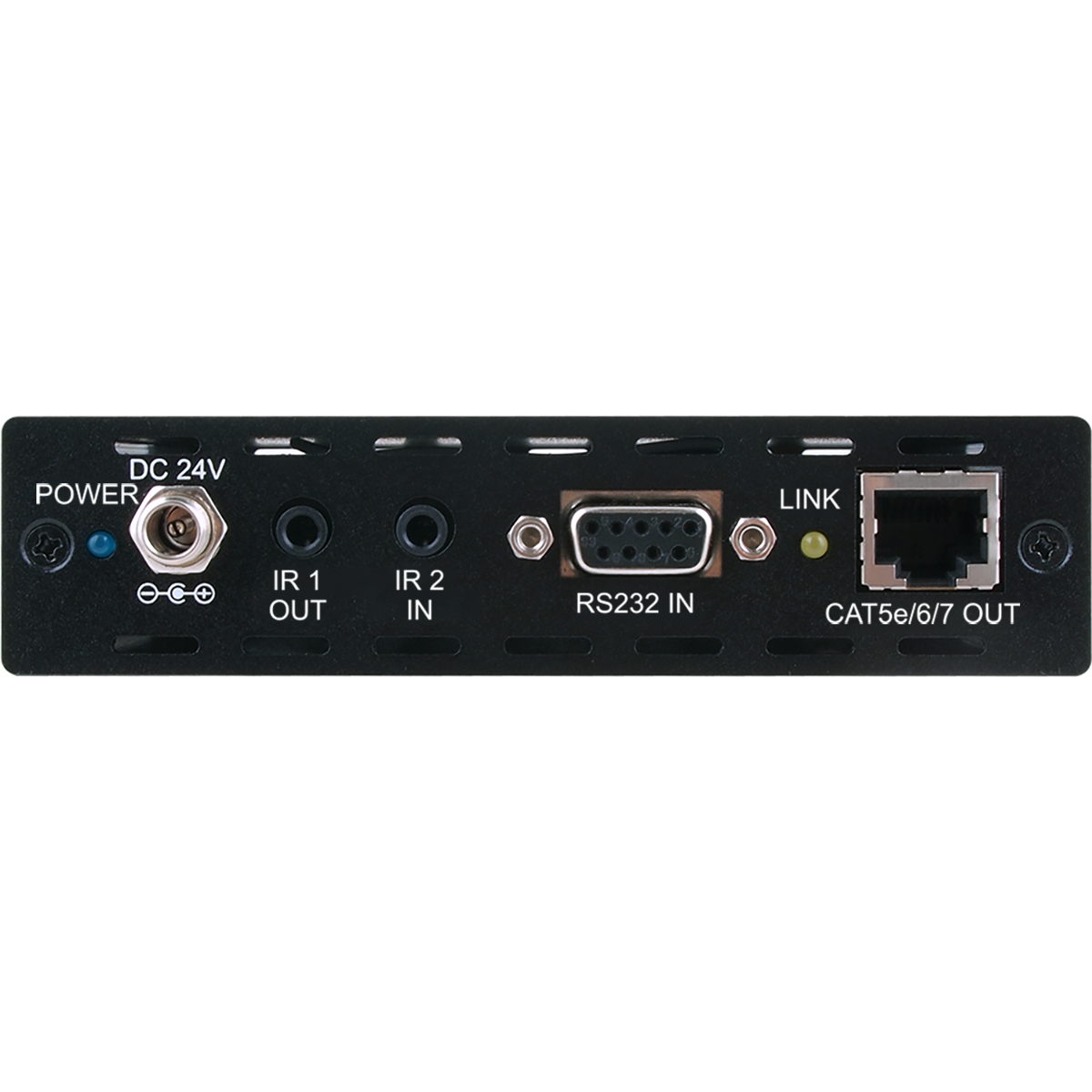

Outputs	1×CAT5e/6/7, 1×IR Blaster
Receiver
Inputs	1×CAT5e/6/7, 1×IR Extender
Outputs	1×DVI, 1×RS-232, 1 x L/R 2 ×Ethernet, 1×IR Blaster
DVI In/Out Cable Distance	Up to 6 Meters
CAT6 In/Out Cable Distance	Up to 100 Meters
DVI In/Out Supports Resolution	480i~1080p@50/60, 1080p@24, VGA~WUXGA(Dual Link DVI Not Supported)
IR Frequency	30~50 kHz
ESD Protection	Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge)
Power Supply	24 V/1.25 A DC (US/EU Standards, CE/FCC/ UL certified)
Dimensions	125 mm(W) x 123 mm (D) x 30 mm (H)/Jacks Excluded 125 mm(W) x 135 mm (D) x 30 mm (H)/ Jacks Included
Weight	384 g (TXC) 392 g (RXC)
Chassis Material	Aluminum
Silkscreen Color	Black
Operating Temperature	0˚C~40˚C/32˚F~104˚F
Storage Temperature	−20 ˚C~60 ˚C/−˚F~140 ˚F
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	13 W

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/06/16	CDVI-1109TXC_Manual	-	-	CDVI-1109TXC_Manual
