CH-107TX

CH-107TX EOL

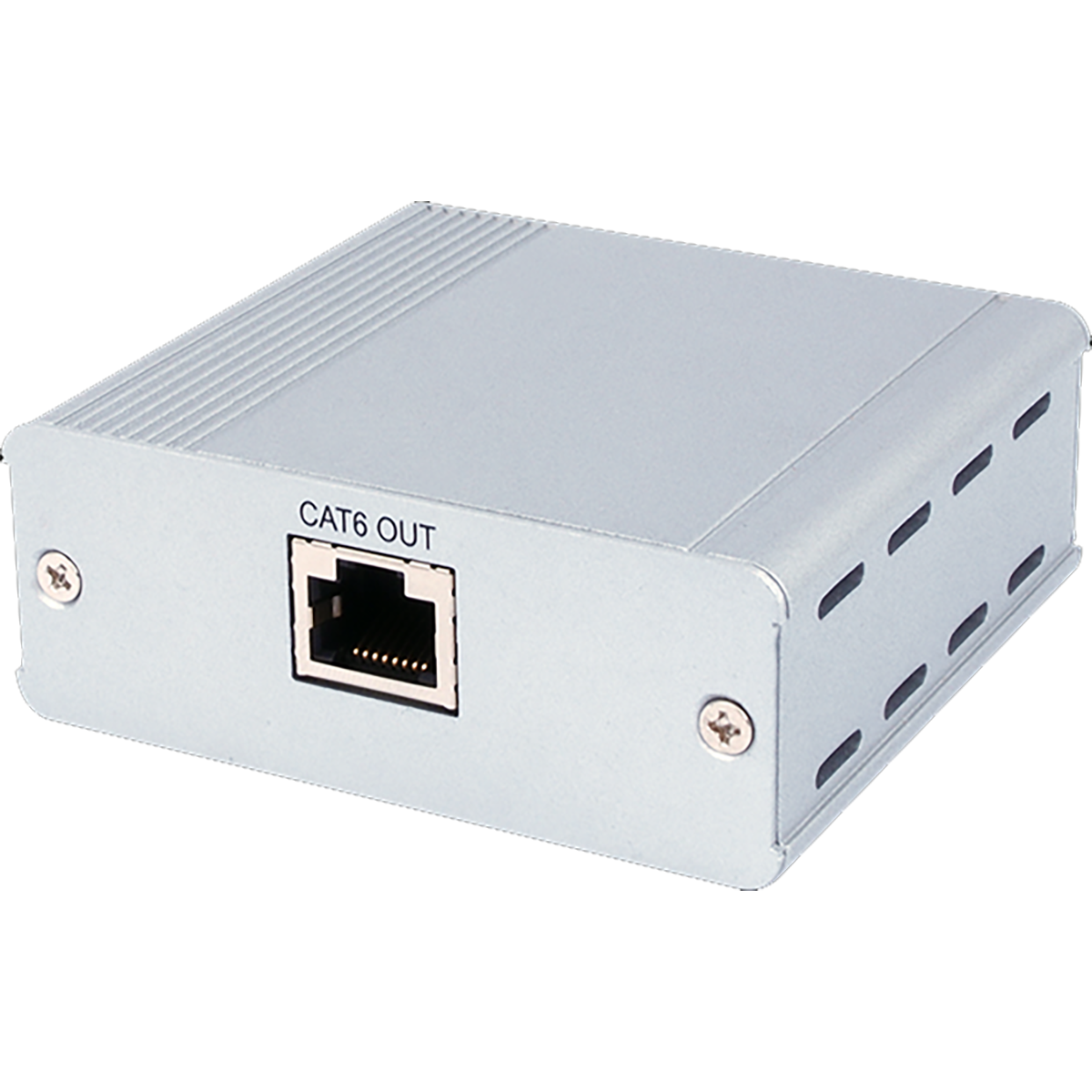

HDMI over Single CAT6 Transmitter (1920 × 1200 (RB) up to 10M)

Supports digital video formats in ‘Deep Color’ mode at up to 36-bit (12- bit/color) Supports lossless compressed Digital Audio formats (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio)
Uses a single CAT6 cable for Data/DDC transmission
Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality
Supports HDMI cable distances of up to 20 meters at 1080p/8-bit and 12-bit resolutions
Supports CAT6 cable distances of up to 45 meters at 1080p/8-bit resolution and 10 meters at 1080p/12-bit resolution
Supports x.v.YCC

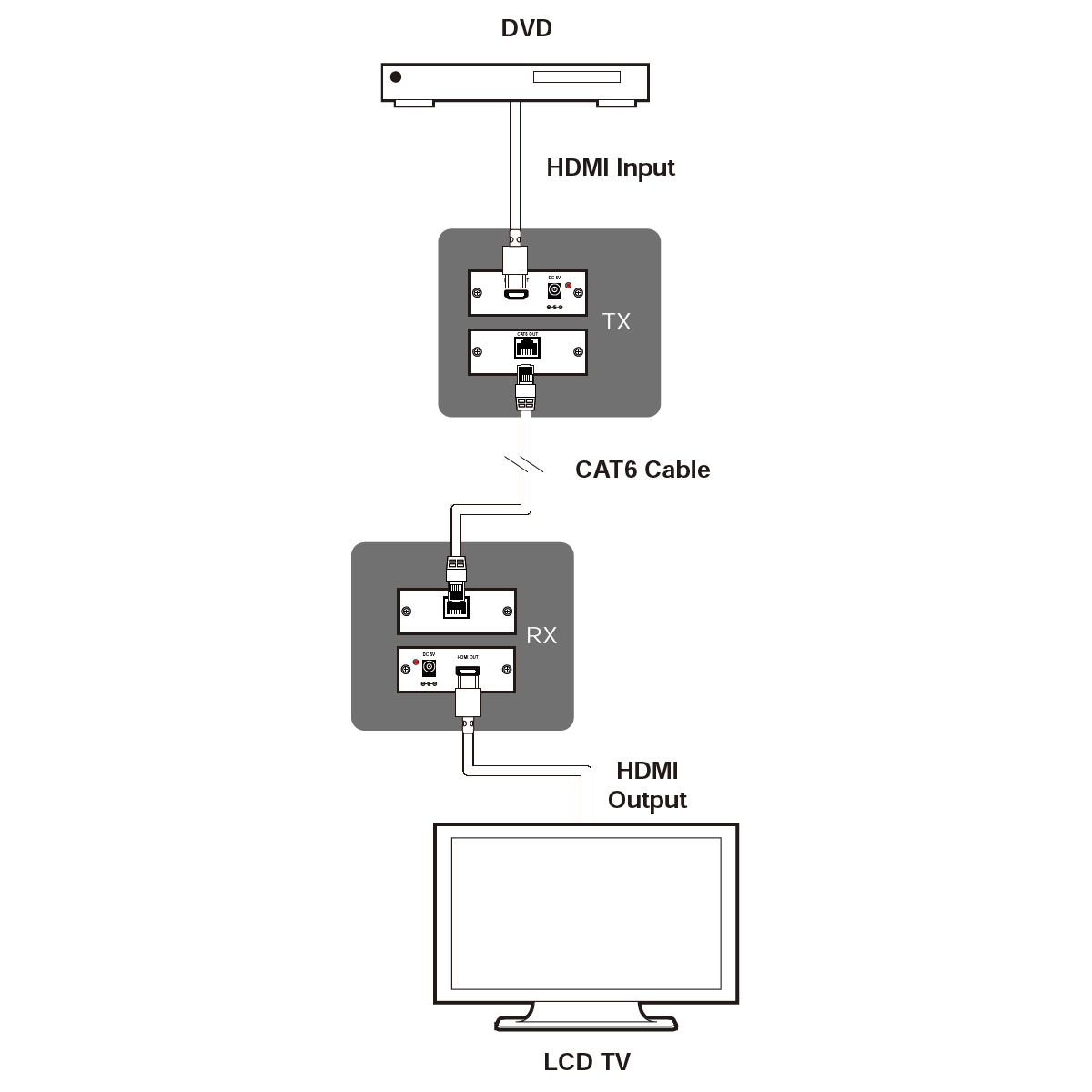

The HDMI transmitter over Single CAT6 is a tool for displaying HDMI content at long distances. Instead of using expensive HDMI cables, your existing CAT6 cables/sockets can perform functions like transferring Deep Color (12 bits/ color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio. The HDMI transmitter and receiver, over ONE CAT6 extender is your preferred HDMI extension tool.

Interfaces

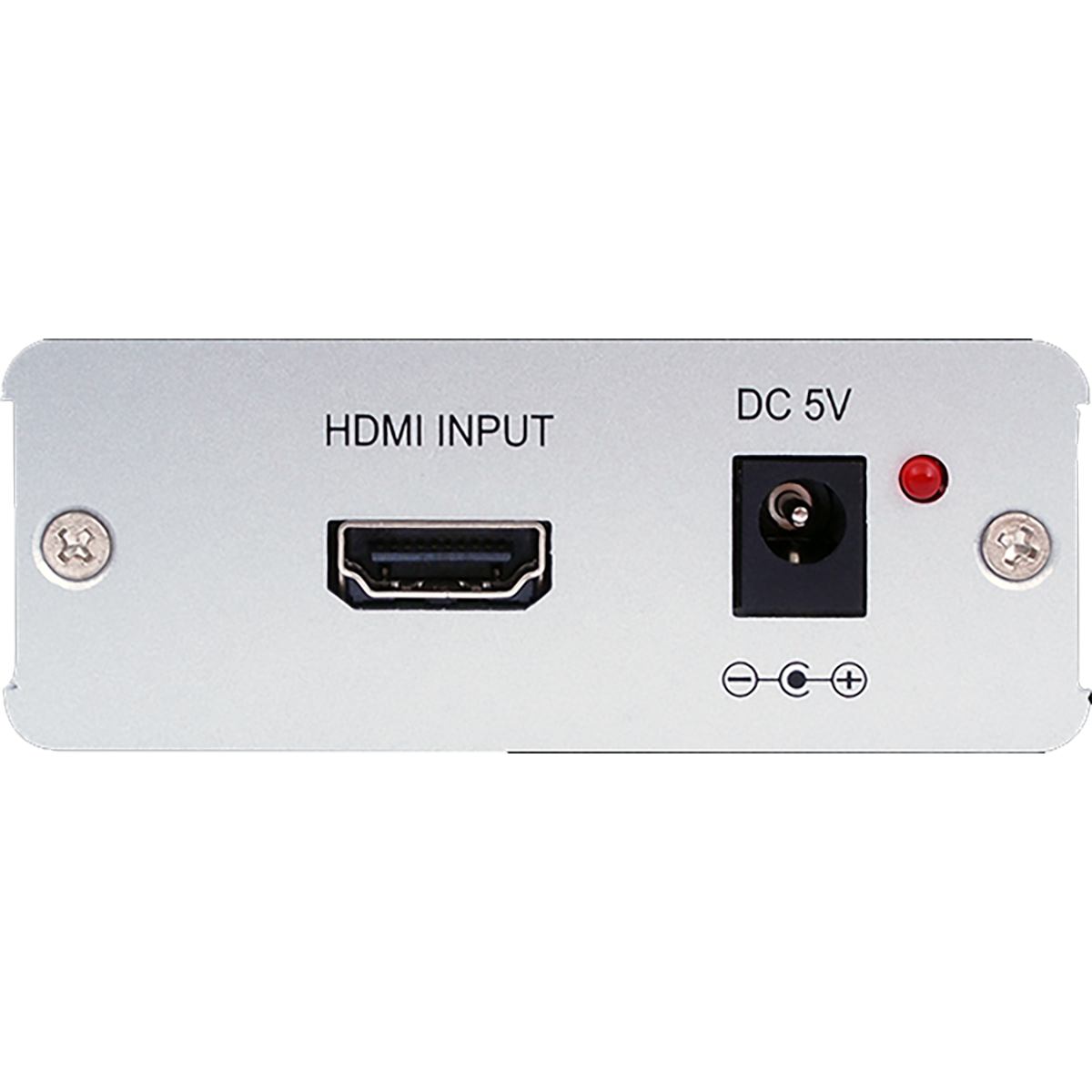

Input Port	1 x HDMI (Type A)

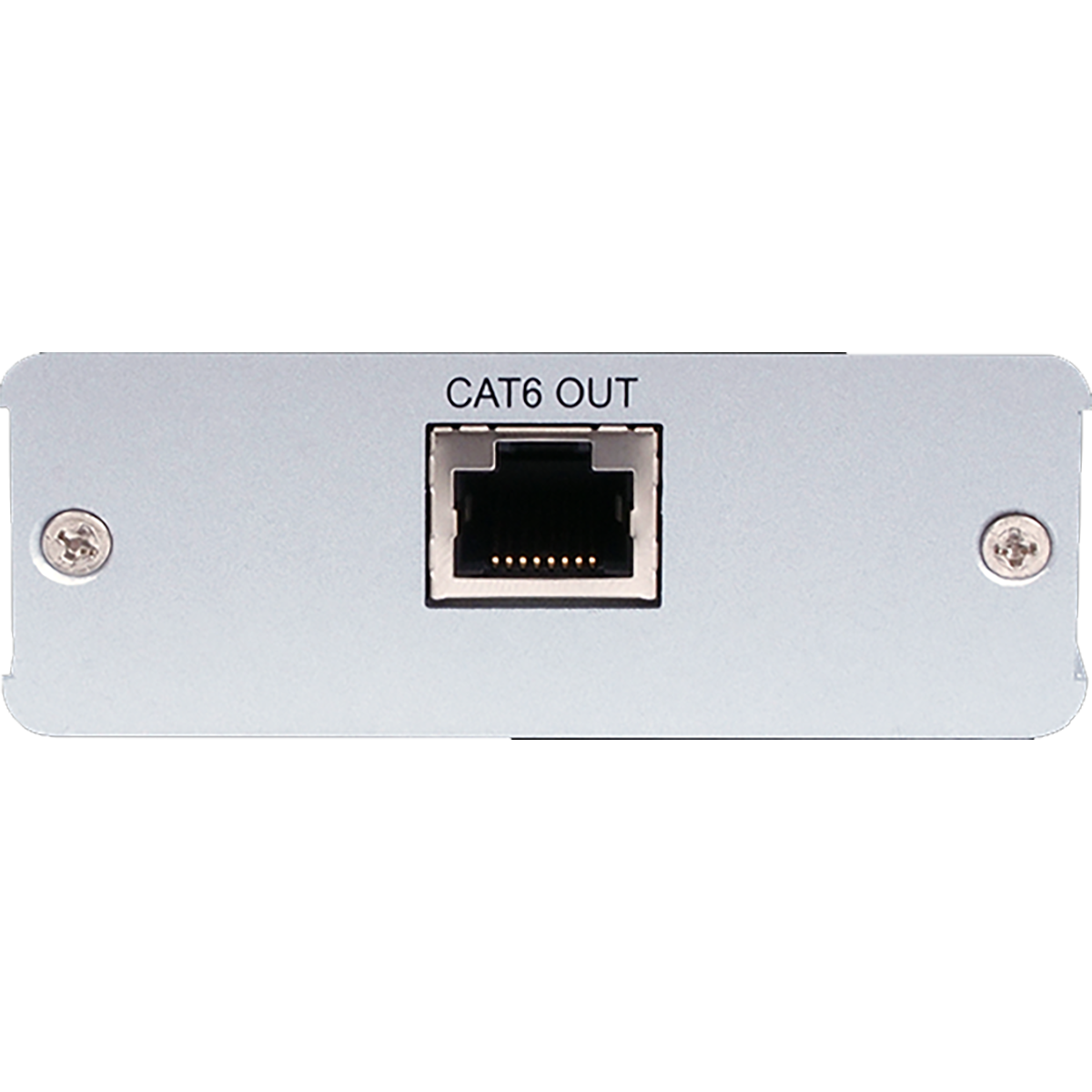

Output Port	1 x CAT6 (RJ-45)

Video
HDMI Compliance	HDMI 1.3 (DVI 1.1 )
HDCP Compliance	HDCP 1.4
Input Signal Types	1920x1080p60 12-bit
Output Signal Type	1920x1080p60 12-bit

Resolutions
Maximum Input	HDMI	1920×1080p@60 1920×1200p@60RB
Maximum Output	CAT6	1920×1080p@60 1920×1200p@60RB

Power
Power Supply	5V/ 1A DC
Power Consumption	3.5W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	White
Dimensions (W×H×D)	78.5 mm x 30 mm x 72 mm
Weight	90g

Field Firmware Update
Interface	PCB on board, uses RS232

Ordering Information
Model No.	Product Description
CH-107TX	HDMI over Single CAT6 Transmitter
CH-107RXN	HDMI over Single CAT6 Receiver

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/19	CH-107TX_Manual	1	all	CH-107TX_Manual
