Board Room
Description:
CYP boardroom solutions integrate audio and video through HDBaseT technology.
The CBL-MPBS-20 allows one button to project the screen.
The CYP master control system lets the user simply control all devices in the environment, it is also interoperable with other control systems.

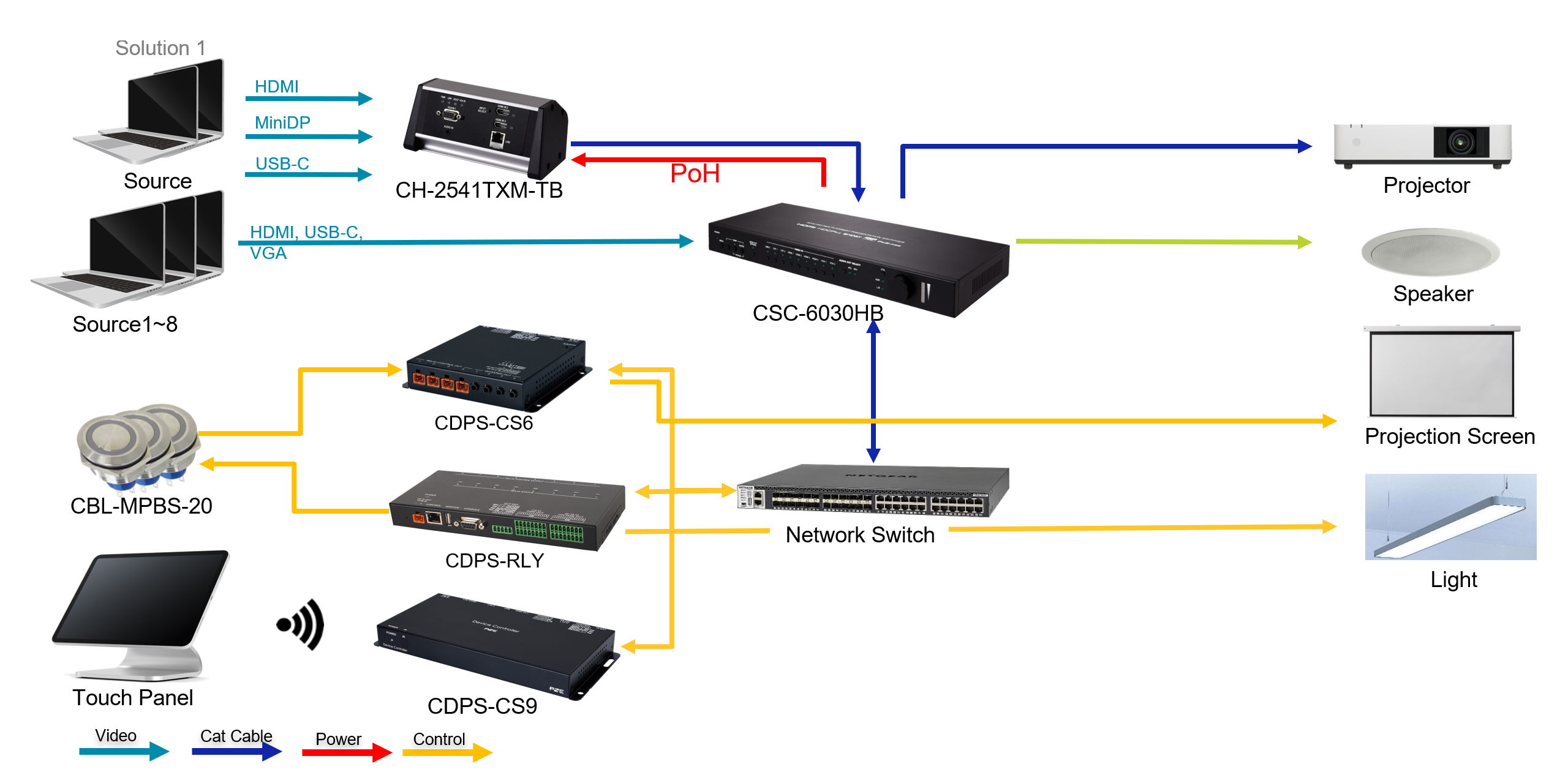

Connecting Diagram Solution 1
Product List Solution 1
| System | Function | Model name |
|---|---|---|
| Video | Presentation switch | CSC-6030HB |
| Video | Table Box | CH-2541TXM-TB |
| Control | Trigger Button | CBL-MPBS-20 |
| Control | Environmental Controller | CDPS-CS6 |
| Control | Environmental Accessory | CDPS-RLY |
| Control | Master Control System | CDPS-CS9 |
| Accessory | HDMI 2.0 Cable 1.8m | CBL-H100-018 |
| Accessory | HDMI 2.0 Premium Cable 3m | CBL-H300-030 |
| Control (Eco Partner) | Network Switch | Netgear |
| Video (Eco Partner) | Projector | SONY |

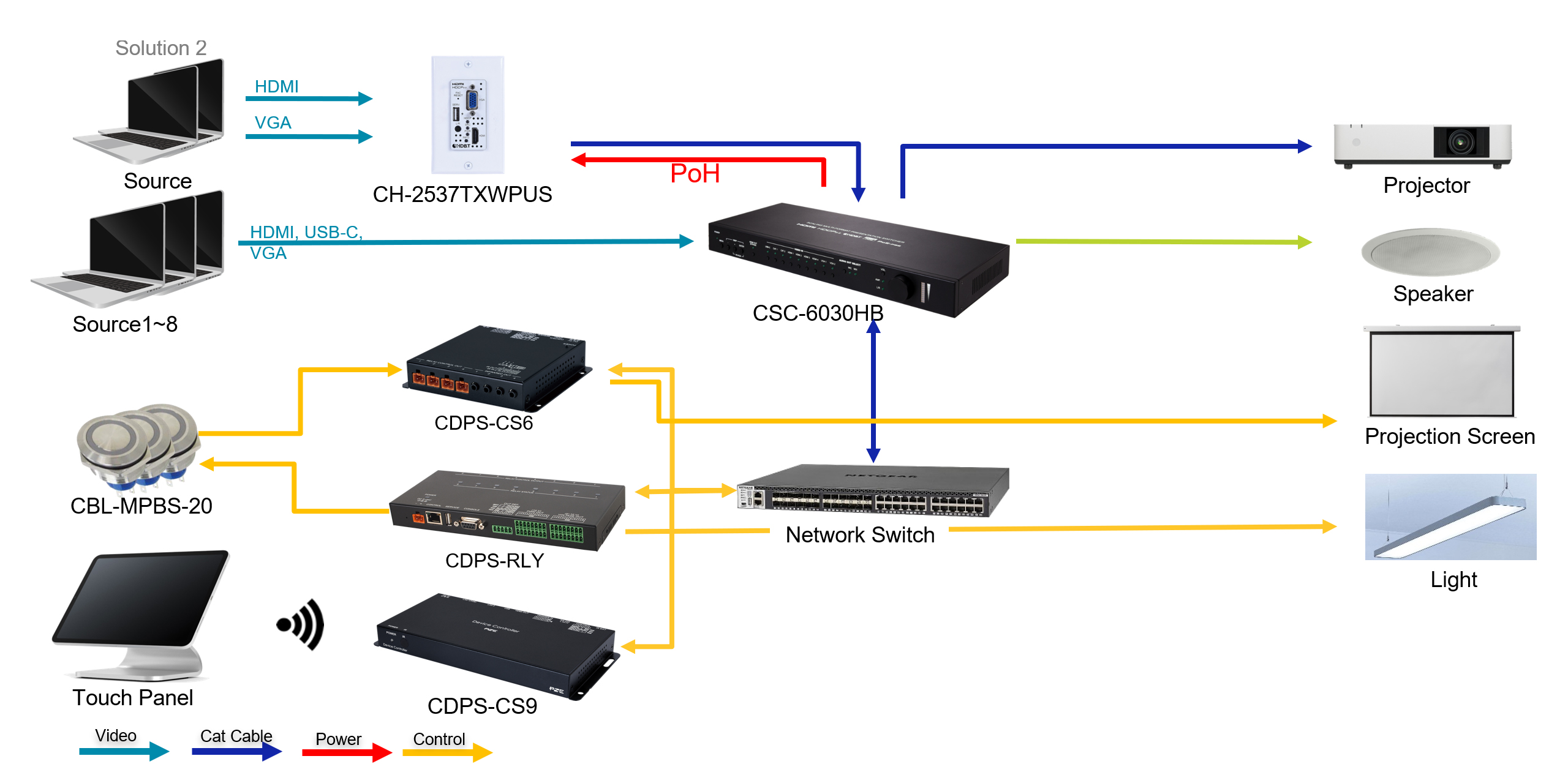

Connecting Diagram Solution 2
Product List Solution 2
| System | Function | Model name |
|---|---|---|
| Video | Presentation switch | CSC-6030HB |
| Video | Wallplate | CH-2537TXWPUS |
| Control | Trigger Button | CBL-MPBS-20 |
| Control | Environmental Controller | CDPS-CS6 |
| Control | Environmental Accessory | CDPS-RLY |
| Control | Master Control System | CDPS-CS9 |
| Accessory | HDMI 2.0 Cable 1.8m | CBL-H100-018 |
| Accessory | HDMI 2.0 Premium Cable 3m | CBL-H300-030 |
| Control (Eco Partner) | Network Switch | Netgear |
| Video (Eco Partner) | Projector | SONY |

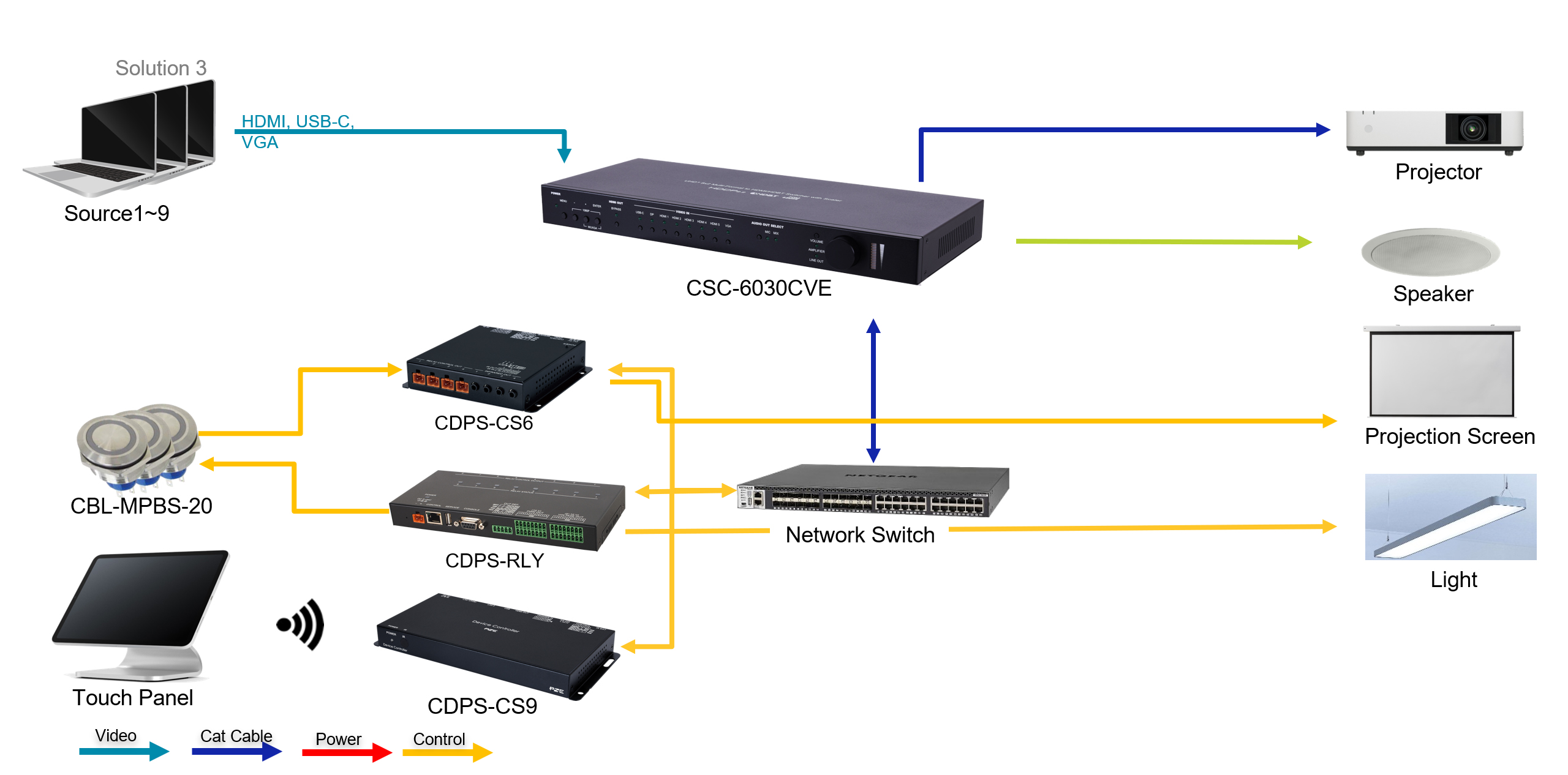

Connecting Diagram Solution 3
Product List Solution 3
| System | Function | Model name |
|---|---|---|
| Video | Presentation switch | CSC-6030CVE |
| Control | Trigger Button | CBL-MPBS-20 |
| Control | Environmental Controller | CDPS-CS6 |
| Control | Environmental Accessory | CDPS-RLY |
| Control | Master Control System | CDPS-CS9 |
| Accessory | HDMI 2.0 Cable 1.8m | CBL-H100-018 |
| Accessory | HDMI 2.0 Premium Cable 3m | CBL-H300-030 |
| Control (Eco Partner) | Network Switch | Netgear |
| Video (Eco Partner) | Projector | SONY |

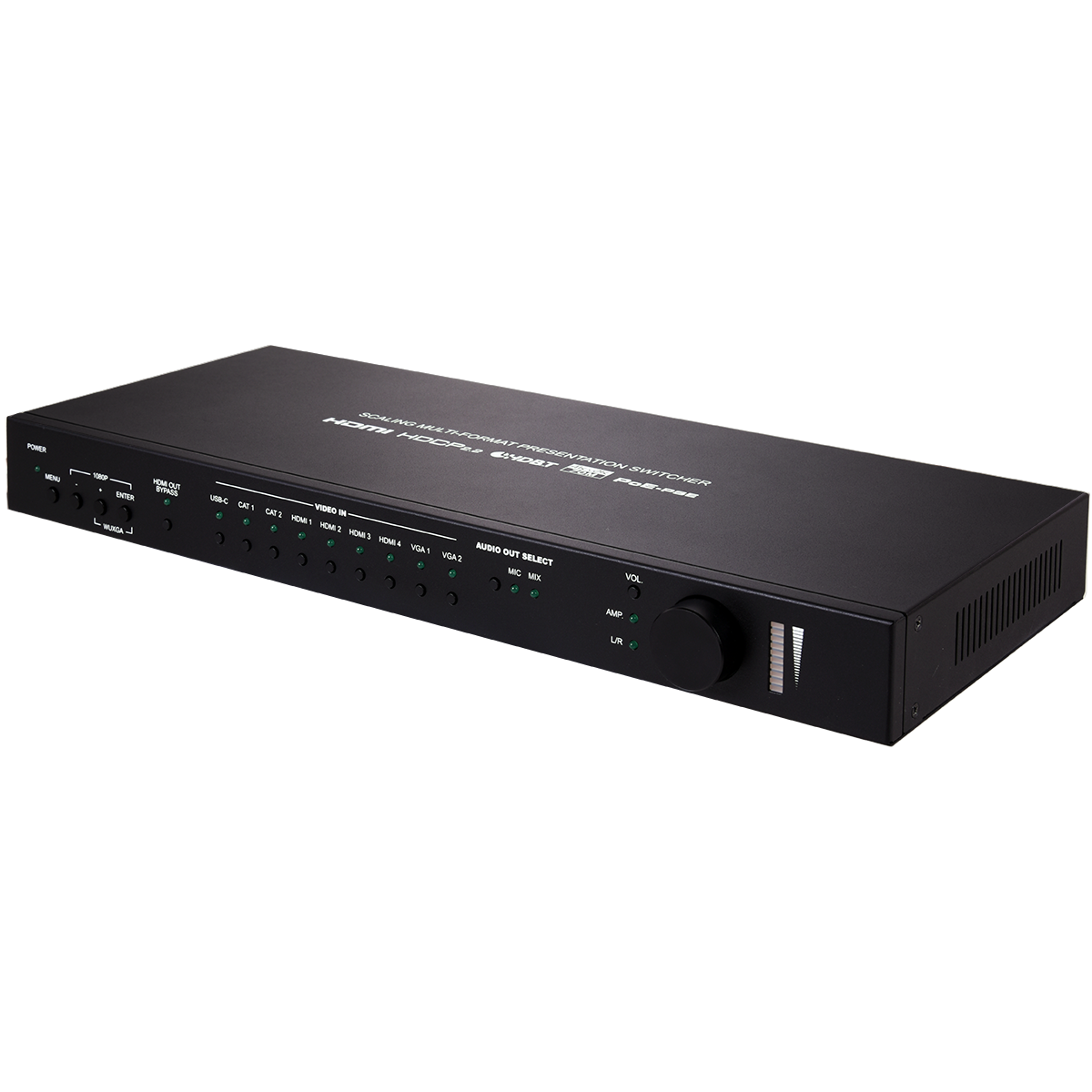

CSC-6030HB
HDMI/HDBaseT/USB-C/VGA to HDMI/HDBaseT Scaler
This 9 by 2 multi-format scaling switcher provides HDMI, USB Type C, HDBaseT, and VGA inputs which can be freely selected for output at a scaled resolution of the user’s choosing over the mirrored HDMI and HDBaseT outputs. The HDMI and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDBaseT output supports automatic down-conversion of 4K60(4:4:4) sources to 4K60(4:2:0). The VGA inputs support resolutions up to WUXGA. The HDBaseT output provides a great solution to extend your audio and video up to 70 meters (at 4K) over a single run of Cat.5e/6/7 cable as well as providing 48V PoH power to compatible HDBaseT Receivers.

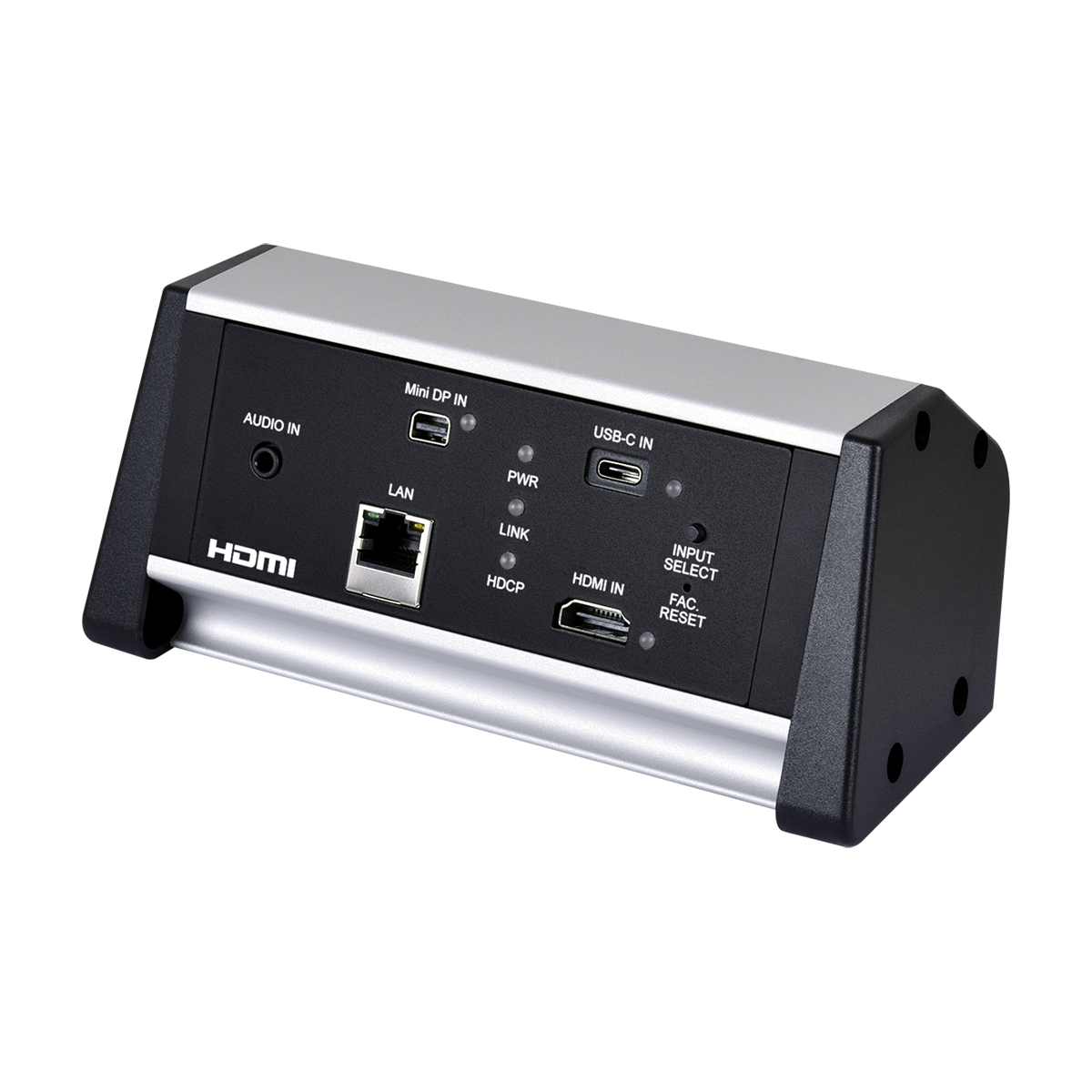

CH-2541TXM-TB
UHD+ 3x1 Multi-Format to HDBaseT Table Box with PoH (PD)
The CH-2541TXM-TB is a brand new AV concept for the commercial & corporate-market segments. Presentation equipment in corporate meeting rooms can be difficult to operate and provide the user with challenges when connecting their source to the installed AV system. Flexible meeting rooms are also becoming more commonplace, which is where the CH-2541TXM-TB provides the perfect balance between ease of use and portability. Providing the user with a flexible AV solution that removes the boundaries of how a meeting space can be used.
CDPS-CS6
Control System Center
This Control System Center is ideal for a user who has a wide variety of devices that need to be controlled. It comes with eight external trigger connections which directly activate 8 (of 16 total) user defined macro events stored within the unit. All 16 macros are available to be activated via the WebGUI, or by Telnet. Those user defined macros can send commands to remote devices via Ethernet, IR (×4), relay trigger (×4), or RS-232/422/485 (×1) allowing for the control of a large array of devices at the push of a button. An integrated IR code learning function is also available, allowing the user to store and re-transmit the IR codes sent by nearly any standard IR remote. Comprehensive user control interfaces are available including WebGUI, Telnet and console (RS-232 in). Last but not least, this unit supports Power over Ethernet (PoE) allowing it to be powered directly from a standard PoE network switch, without the need for an external power adapter, allowing for incredible installation flexibility.

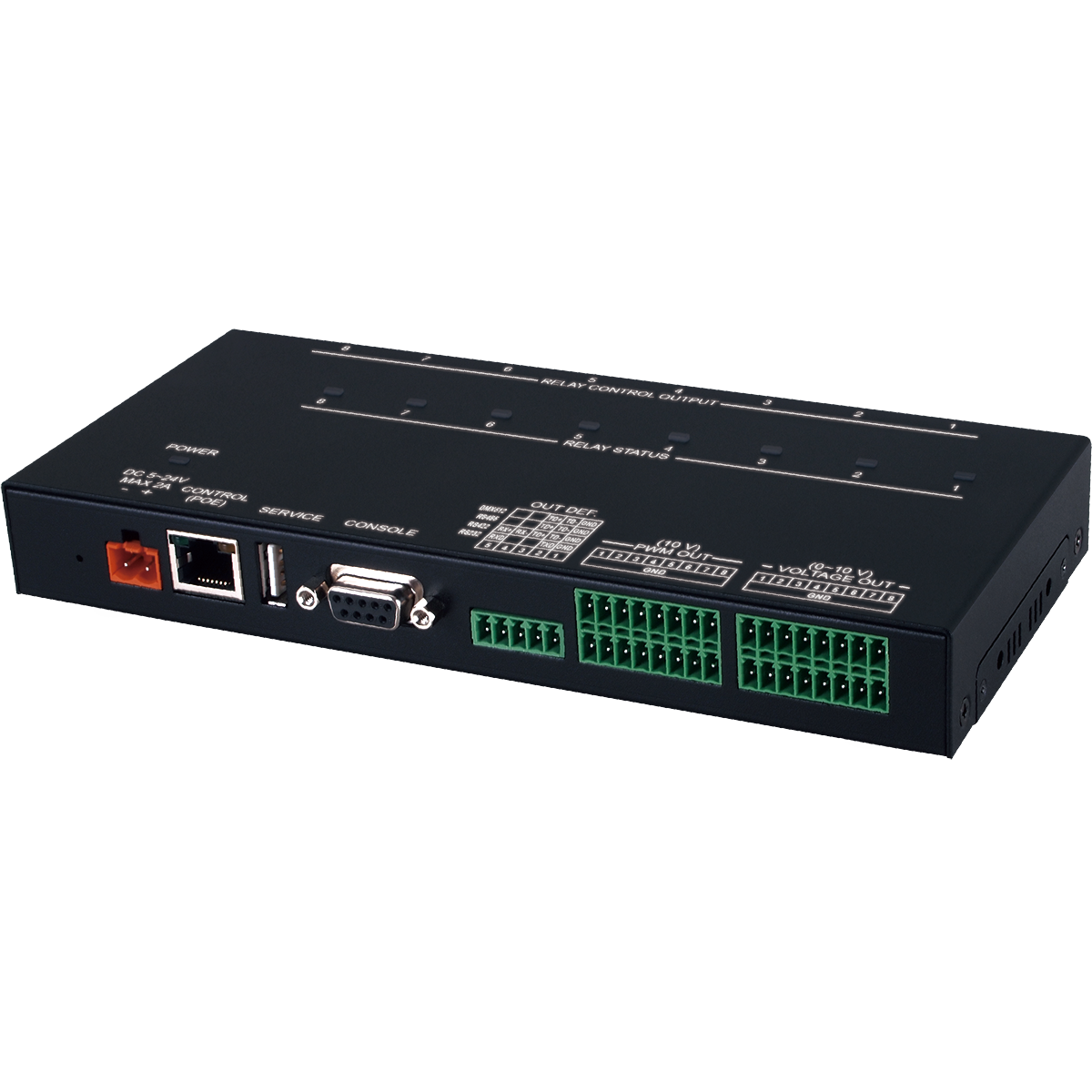

CDPS-RLY
Auxiliary Relay Control System
The Auxiliary Relay Control System is designed for multi-purpose and multi-task trigger system usage. It features 8 Relays for triggering, 8 PWM (Pulse-Width Modulation) to set the duty cycle, 8 Voltages for setting the trigger voltage, and 1 customizable setting that allows control through command inputs. This customizable setting supports RS-232/422/485 and DMX512 interfaces, allowing connection of up to 25 devices for control. The device's control interfaces, such as RS-232, Telnet, and the built-in PoE (PD), provide users with a completely user-friendly experience.
CDPS-CS9
Universal Device Controller
This controller is a powerful and flexible solution for controlling all active units within same network. The user only needs to install this unit into the same local network to easily define and configure channel routing selections using the WebGUI. Not only could about to check all the units status that under controller’s control, it also able to define and switch routes, allowing for easy control over multiple video zones.

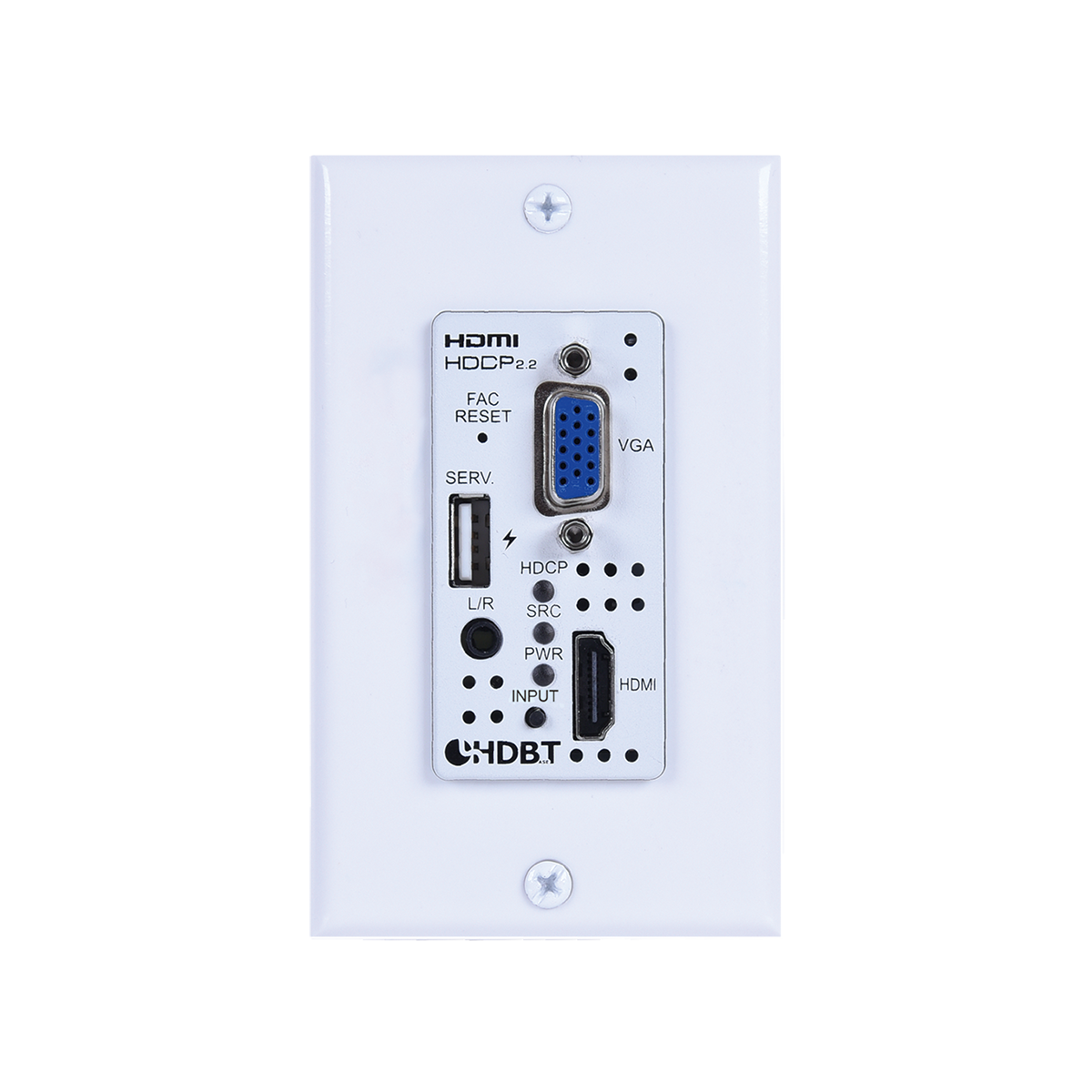

CH-2537TXWPUS
UHD+ HDMI/VGA over HDBaseT Wallplate Switcher
This Wallplate Switcher is an HDMI and VGA switch with audio embedding and HDBaseT output. The wallplate is designed for use with US singlegang sized enclosures. This Transmitter can send uncompressed highdefinition video/audio over a single cable up to a distance of 100 meters at 1080p@60Hz. The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit) and the VGA input supports resolutions up to WUXGA (RB). With the use of the 3.5mm audio input, stereo audio may be embedded with VGA or DVI sources as well. Despite HDBaseT’s 10.2Gbps bandwidth limitation, high bandwidth 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit), can be supported and will be automatically converted to 8-bit color,or the 4:2:0 color space when necessary. Signal management features such as automatic switching based on input signal and hot plug detection enable convenient handsfree operation. A multifunction button on the face of the unit provides access to an information OSD as well as allowing manual input selection. When paired with a compatible Receiver, additional functionality such as EDID management, HDCP management and basic event automation (which can send customized RS-232 or CEC commands to external devices automatically) also becomes accessible. This Transmitter (PD) may be powered locally or via 48V PoH from a compatible HDBaseT Receiver (PSE), which allows for greater flexibility in installations. The unit can be controlled via the front panel button with OSD. When paired with a compatible Receiver it may also be controlled via WebGUI, Telnet, and RS-232 making it exceptionally versatile.

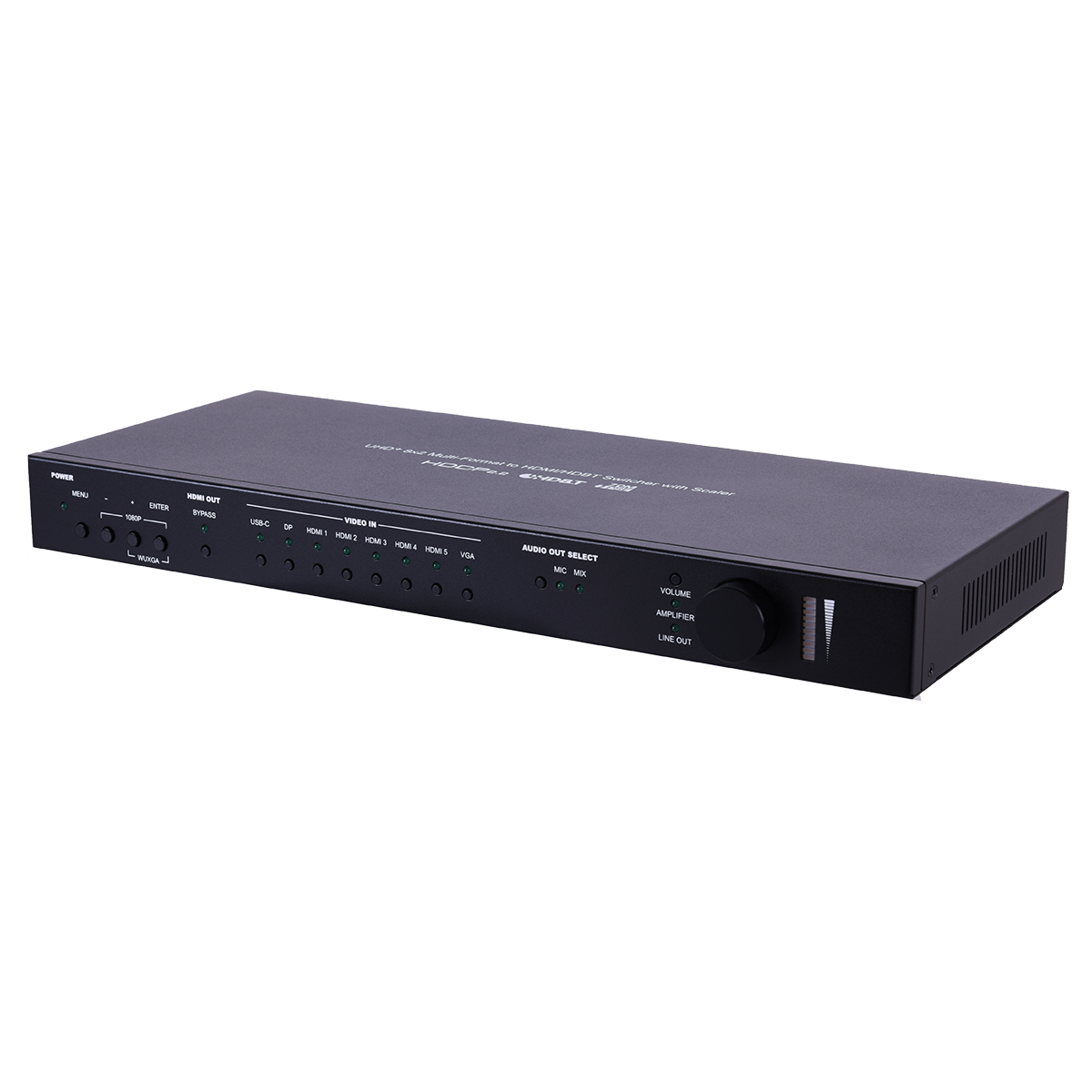

CSC-6030CVE
UHD+ 8x2 Multi-Format to HDMI/HDBT Switcher with Scaler
This 8 by 2 multi-format scaling switcher provides HDMI, DisplayPort, USB-C and VGA inputs which can be freely selected for output at a scaled resolution of the user’s choosing over the mirrored HDMI and HDBaseT outputs. The HDMI and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDBaseT output supports automatic down-conversion of 4K60(4:4:4) sources to 4K60(4:2:0). The VGA inputs support resolutions up to WUXGA. The HDBaseT output provides a great solution to extend your audio and video up to 70 meters (at 4K) over a single run of Cat.5e/6/7 cable as well as providing 48V PoH power to compatible HDBaseT Receivers.
