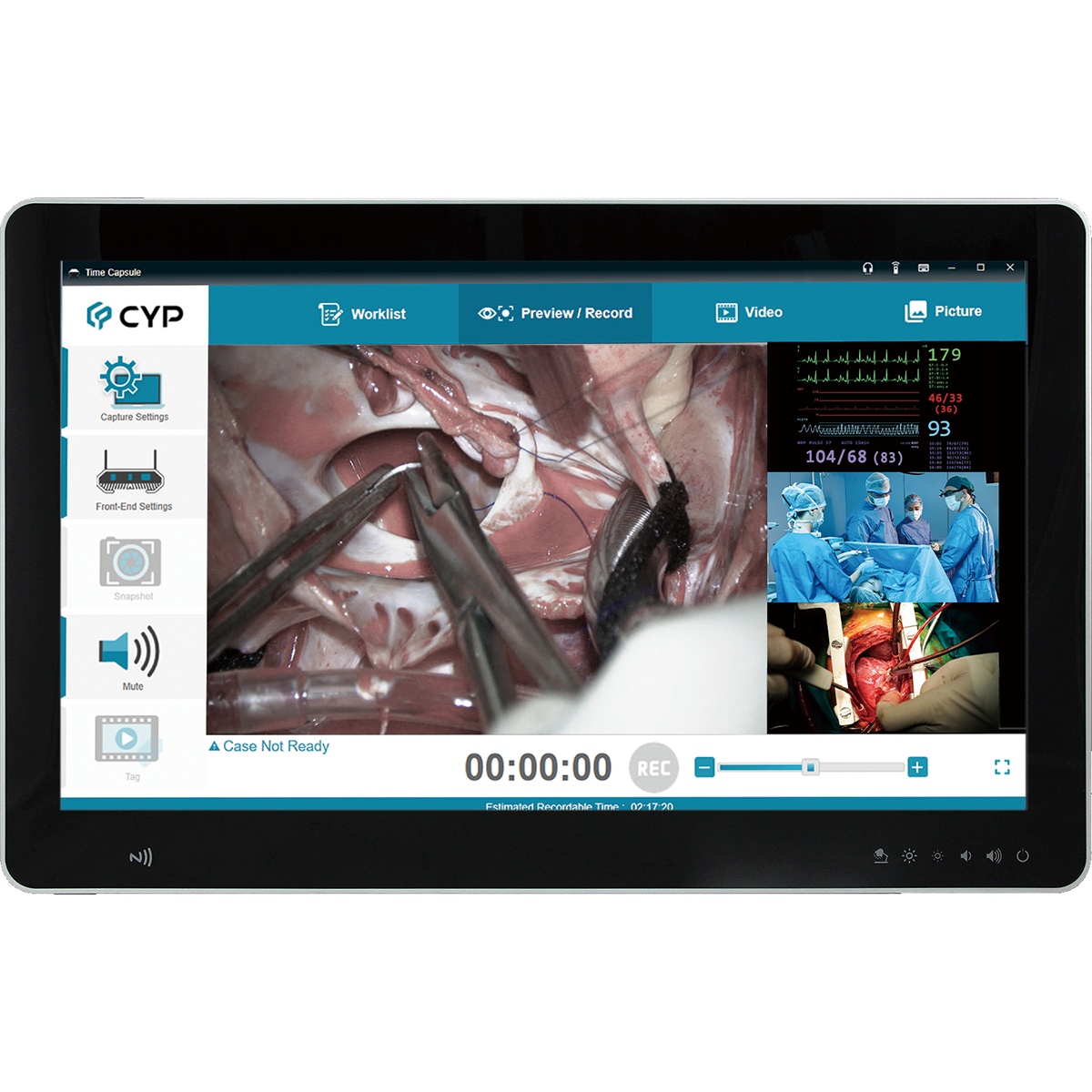

  • MED-PPS-2138_medical_panel_pc_01_0227023813802

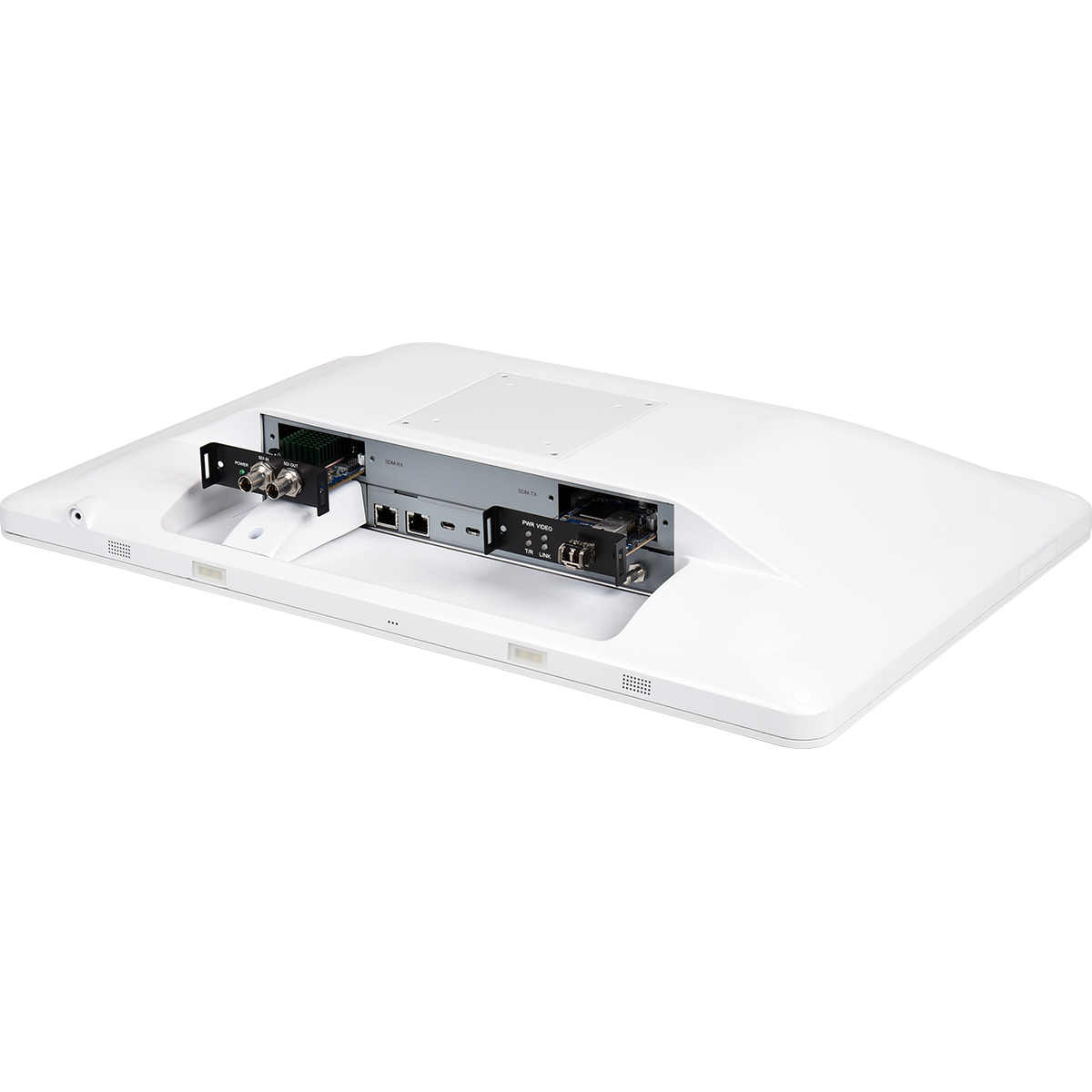

  • MED-PPS-2138 Rear-2_0731063554536

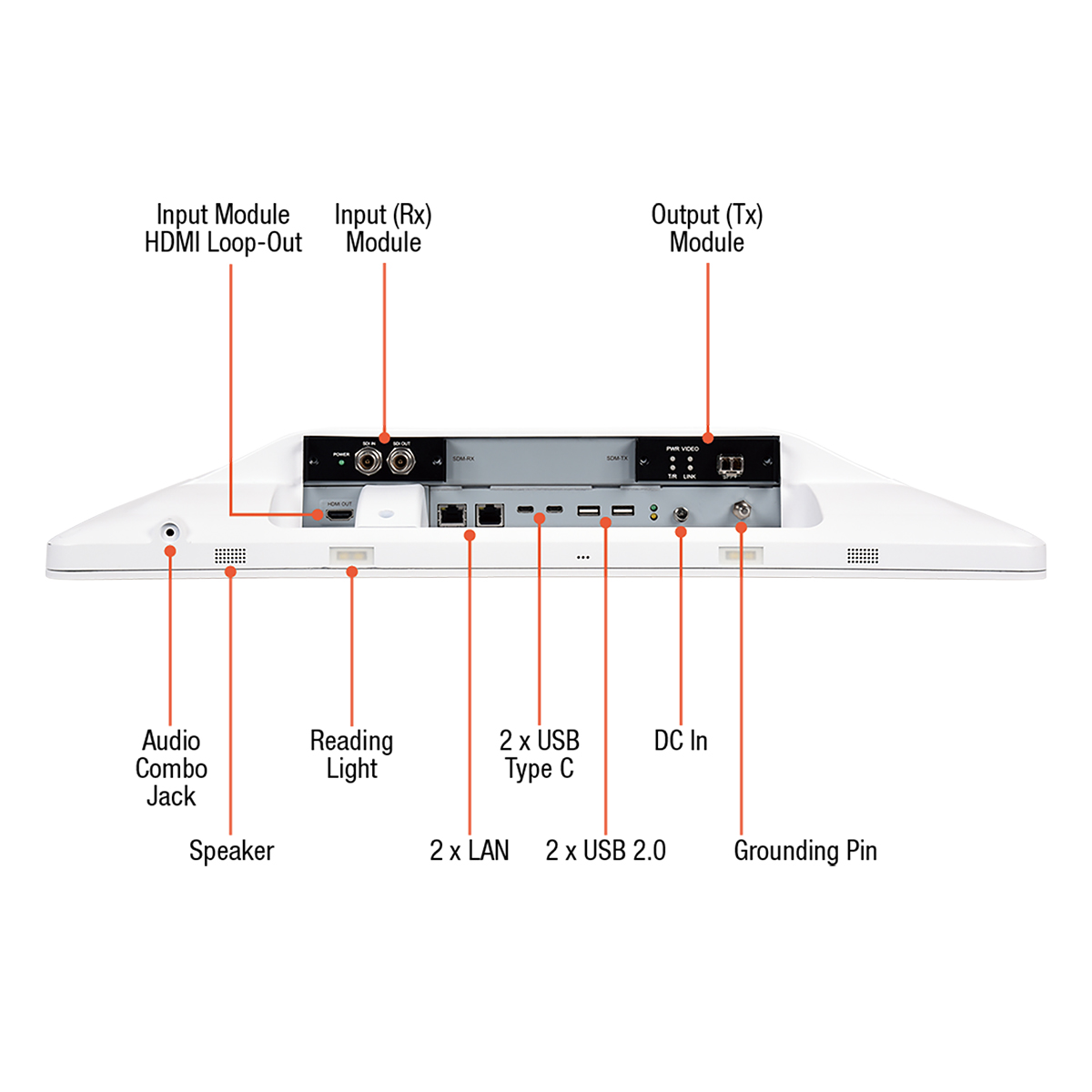

  • I-O Overview_0731072056212

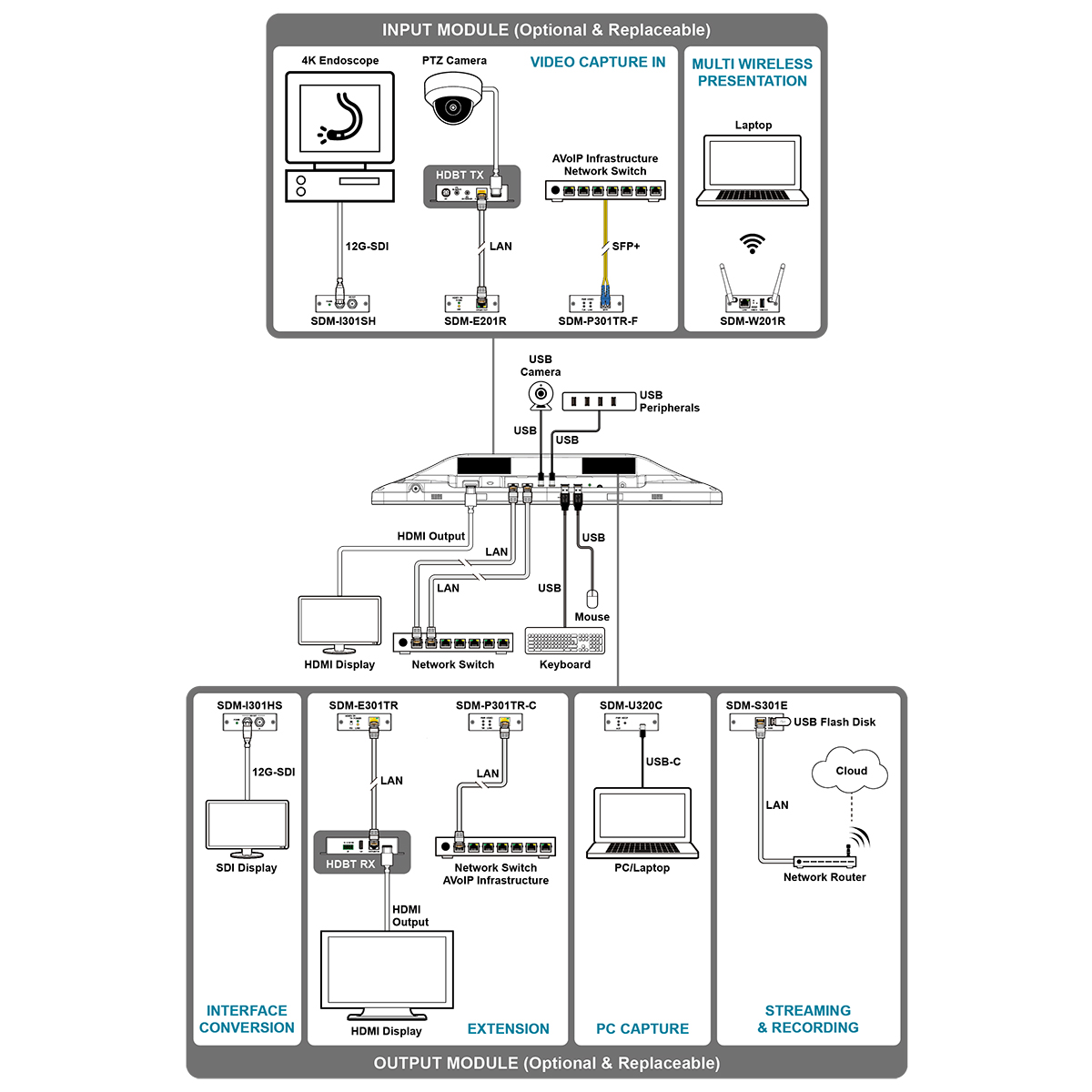

  • MED-PPS-2138_Connection_Diagram_0731065004994

MED-PPS-2138

21.5" Medical Panel PC with Audiovisual Module Cards Expansion

  • 21.5” FHD display with PCAP multi-touch
  • Ultra-slim design
  • Front panel IP65
  • Optional NFC/ webcam/ barcode/ handset/ WIFI
  • Optional module cards for HDBaseT/ SDVoE/ Streaming and more functions
icon_4_HDMI HIGH-DEFINITION icon_105_Streaming icon_106_Recording icon_1_Modularized
PRODUCTS FEATURED

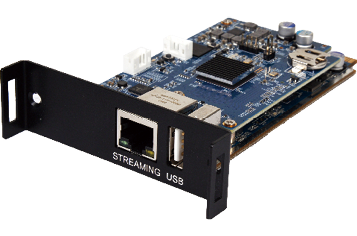

SDM-S301E

H.264/265 Live Video Streaming and Recording Module Card

SDM-S301E is a reliable, high-performance H.264/265 Live Video Streaming and Recording module card that transmits 4K60 video signal over standard Gigabit Ethernet. Video output can be up to 4K60 for better quality for streaming. Streaming A/V can be compatible with RTSP/TCP/UDP/RTMP and be streamed on YouTube, Facebook and other platforms instantly and easily. All video content is encoded and streamed with minimal latency and high quality ,making it ideal for live streaming events to a variety of popular online streaming services or within the local network. The video may also be recorded locally (via USB thumb drive) or to a local network drive while it is being streamed.

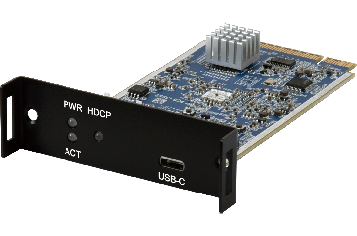

SDM-U320C

4K30 USB-C Video Capture Module Card

The 4K30 USB-C Video Capture Module Card is able to connect to a PC or laptop via USB-C interface for capturing or recording 4K30 video signals. The module design is compatible with CYP module slot, offering flexible options to customers. This module card supports Windows, macOS, and Linux systems.

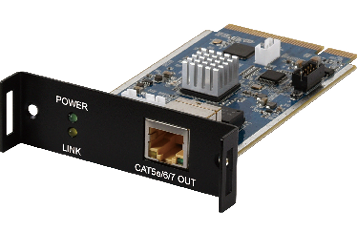

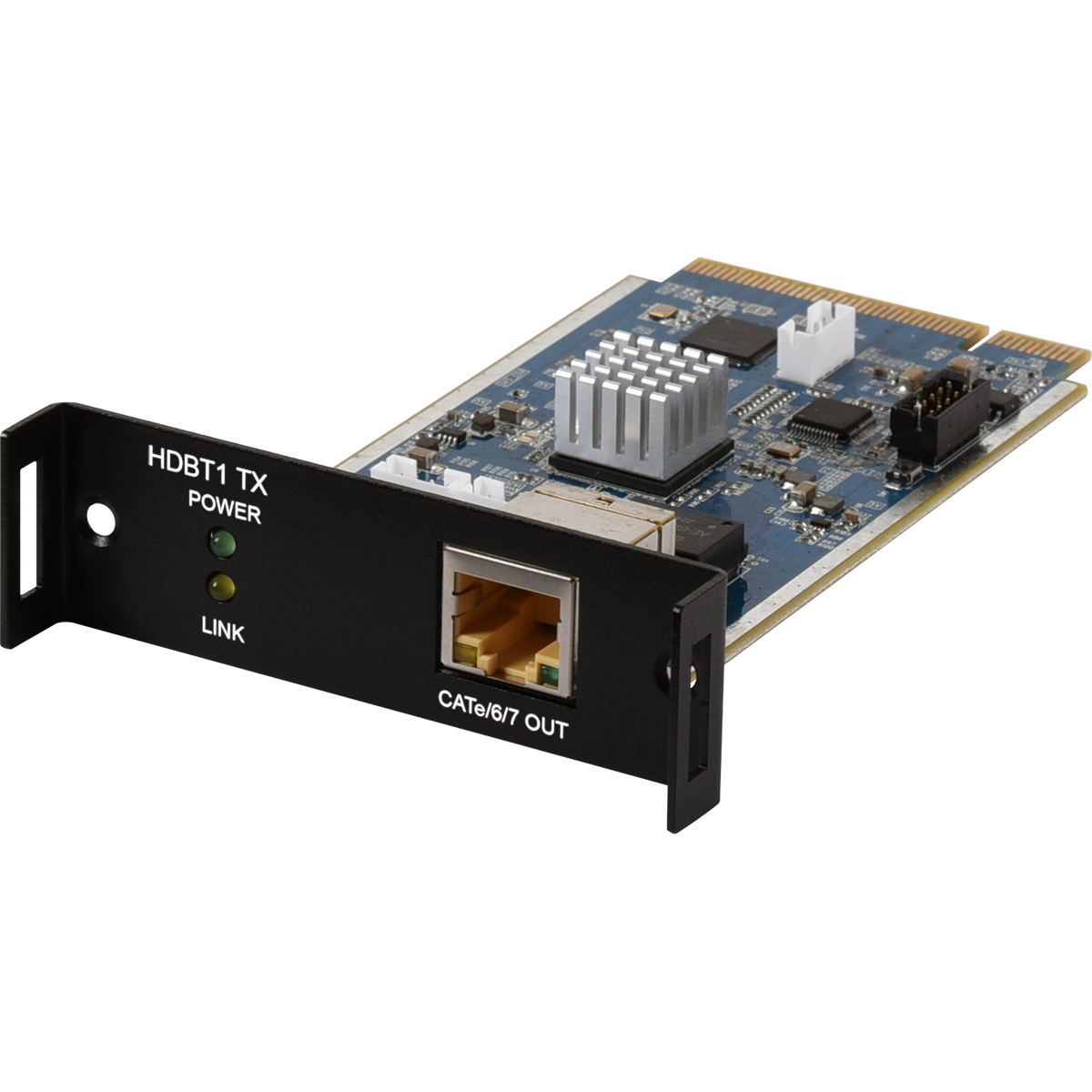

SDM-E201T

HDBaseT Transmitter Module (4K@60 420 up to 40M)

SDM-E201T is HDBaseT transmitter module card. It is able to transmit HDMI signals from host module device, such as PC, laptop, Blu-ray player and more. Extension distance is up to 40 meters, with resolutions up to 4K@60 via category cable. This module card is compatible with CYP output module platform, CSC-VPR-3421 and other platforms of SDM output module, offering customers great flexibility in different scenarios. Also, this module card can be used with SDM-E201R or other HDBaseT receivers with category interface for signal extension.

SDM-P301TR-C

4K60 AV over IP Transceiver Module

This AV over IP Transceiver Module is designed for high-quality, IP routable, AV extension up to 4K@60 4:4:4 with minimum latency. The use of 10-Gigabit Ethernet ports, and Cat.6A cable allows transmission of the video signal up to 100m. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode. When combined with the optional IP Master Controller or control software, the functionality of the transceiver expands exponentially. Multiple transmitters and receivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations. Advanced control such as firmware update can also be performed conveniently through the optional IP Master Controller or control software. The module’s design is compatible with a variety of products that have a standard CYP Module Slot, offering increased flexibility to customers.

SDM-P301TR-F

4K60 AV over IP Transceiver Module

This AV over IP Transceiver Module is designed for high-quality, IP routable, AV extension up to 4K@60 4:4:4 with minimum latency. Every Transceiver is capable of simultaneous bi-directional AV extension, enhancing the flexibility of any installation. The use of interchangeable, field replaceable, SFP+ modules allows for transmission distances of up to 120km (Maximum transmission distance depends on the SFP+ modules used).

SDM-E201R

HDBaseT Receiver Module (4K@60 420 up to 40M)

The HDBT Module Card is able to receive signals from compatible transmitter via Category cable, with resolutions up to 4K@60. The module card is compatible with CYP module slot, CPLUS-V32SDM. It can be combined with transmitters that have category interface. This module card offers flexible options to customers.

SDM-W201R

Hyshare Pro Wireless Receiver Module

The Hyshare Pro is a high-performance Wireless Receiver Module, which provides a smooth wireless screen-casting experience. Users are free from messy cables and complicated interfaces. It supports cross-platform collaboration and communication, including Windows, macOS, Android, and iOS systems. This wireless receiver Mobile can be easily slotted into CYP SDM input platform, such as CPLUS-V32SDM. Users can instantly share their screens on a host computer, smart phone or tablet in meetings or classes through the Hyshare Pro App or the optional Hyshare Pro Pod.
