Ballroom

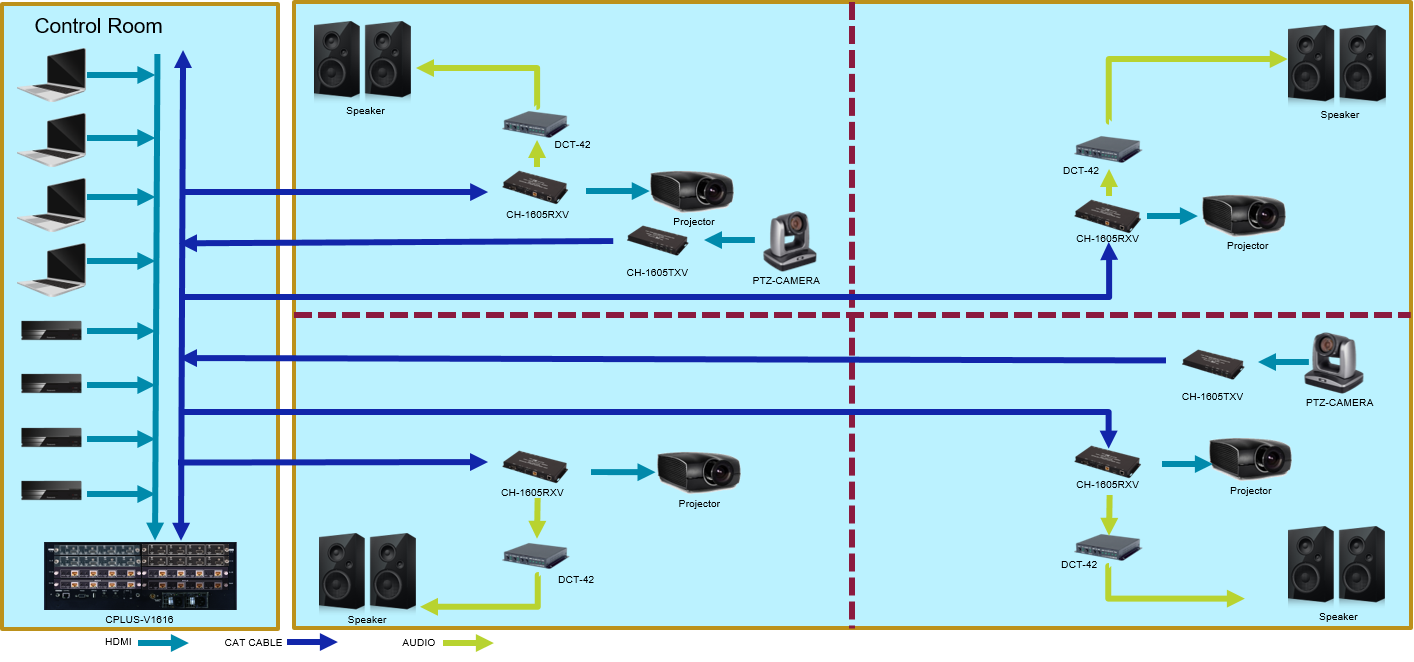

Connection diagram (Modular Matrix Solution)
Ballroom separated to several small rooms or as a whole huge room for Banquets
Ordering information
Modular Matrix solution for Ballroom Application
| System | Function | Model Name |
|---|---|---|
| Video | Modular Matrix | CPLUS-V1616 |
| Video | 4K UHD+ HDMI Input Card | CIN-V4HP |
| Video | 4K UHD+ HDMI Output Card | COUT-V4HP |
| Video | 4-Port HDBT Input Card | CIN-4C |
| Video | 4-Port HDBT Output Card | COUT-4C |
| Video | UHD+ HDMI over HDBT Transmitter w/ HDR/ARC | CH-1605TXV |
| Video | UHD+ HDMI over HDBT Receiver w/ HDR/ARC | CH-1605RXV |
| Audio | Digital/Analog Stereo Amplifier | DCT-42 |
| Video | PTZ Camera | Aver PTZ330 |
| Accessory | Premium High Speed HDMI Cable | CBL-H300 |

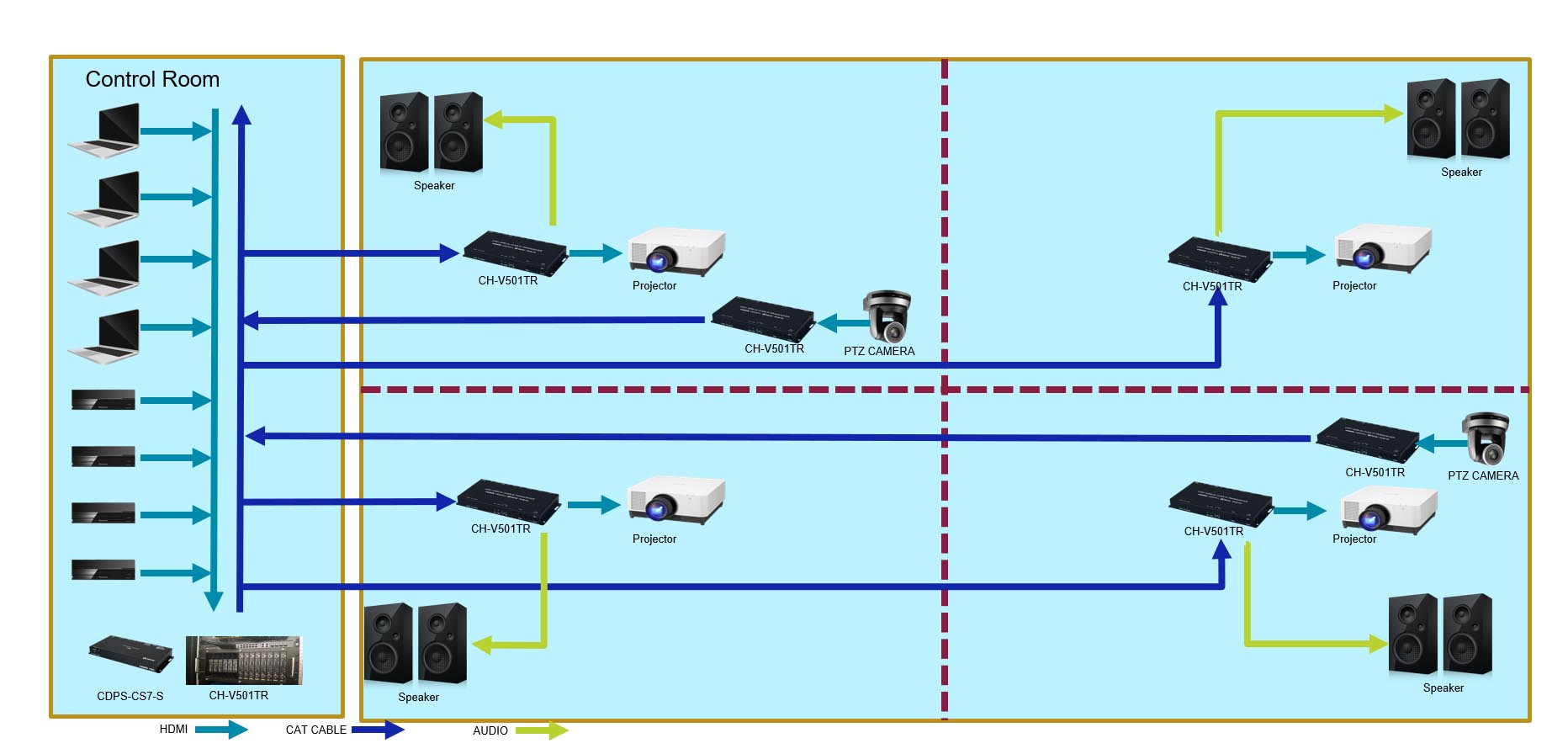

Connection diagram (SDVoE Solution)
Ballroom separated to several small rooms or as a whole huge room for Banquets
Ordering information
SDVoE Solution for Ballroom application
| System | Function | Model Name |
|---|---|---|
| Video | 4K UHD+ HDMI over IP Transceiver | CH-V501TR |
| Control | AV over IP Master Controller | CDPS-CS7-S |
| Control | Network 10G Switch | Ntgear M4300 8X8F |
| Video | PTZ Camera | Aver PTZ330 |
| Power | 12V DC Power Manager | CSR-8PSU-12V |
| Video | Projector | SONY VPL-FHZ131L |
| Accessory | Premium High Speed HDMI Cable 2.0M | CBL-H300-020 |
| Accessory | 6U Rack Chassis | CSR-G6400 |
