Conference Room
Description:
CYP conference room solutions integrate audio and video through HDBaseT technology.

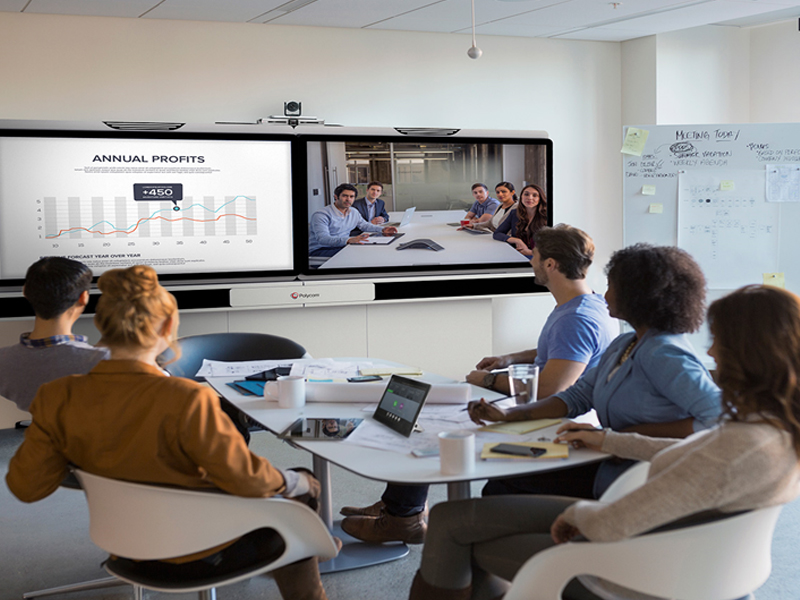

The USB extension connects the USB camera mounted in the wall above a display and a laptop on the table.
The CYP master control system lets the user simply control all devices in the environment, it is also interoperable with other control systems.
Connecting Diagram Solution 1
Product List Solution 1
| System | Function | Model name |
|---|---|---|
| Video | Transmitter | CH-2606TX |
| Video | Receiver | CH-2606RX |
| Audio | Amplifier 20W x 2 | DCT-42 |
| Control | Environmental Controller | CDPS-CS6 |
| Control | IP Controller | CDPW-K1US |
| Control | Master Control System | CDPS-CS9 |
| Accessory | HDMI 2.0 Cable 1.8m | CBL-H100-018 |
| Accessory | HDMI 2.0 Premium Cable 3m | CBL-H300-030 |
| Video (Optional) | Wireless presentation system, 2 to 1 | WPS-QPM01 |
| Control (Eco Partner) | Network Switch | Netgear |
| Video (Eco Partner) | Camera | Aver |
| Video (Eco Partner) | Projector | SONY |
Connecting Diagram Solution 2
Product List Solution 2
| System | Function | Model name |
|---|---|---|
| Video | HDBT3.0 Transceiver | VEX-E4701TR-B1C |
| Audio | Amplifier 20W x 2 | DCT-42 |
| Control | Environmental Controller | CDPS-CS6 |
| Control | IP Controller | CDPW-K1US |
| Control | Master Control System | CDPS-CS9 |
| Accessory | HDMI 2.0 Cable 1.8m | CBL-H100-018 |
| Accessory | HDMI 2.0 Premium Cable 3m | CBL-H300-030 |
| Video (Optional) | Wireless presentation system, 2 to 1 | WPS-QPM01 |
| Control (Eco Partner) | Network Switch | Netgear |
| Video (Eco Partner) | Camera | Aver |
| Video (Eco Partner) | Projector | SONY |
Connecting Diagram Solution 3
Product List Solution 3
| System | Function | Model name |
|---|---|---|
| Video | Transmitter | CH-2603TX |
| Video | Receiver | CH-2603RX |
| Audio | Amplifier 20W x 2 | DCT-42 |
| Control | Environmental Controller | CDPS-CS6 |
| Control | IP Controller | CDPW-K1US |
| Control | Master Control System | CDPS-CS9 |
| Accessory | HDMI 2.0 Cable 1.8m | CBL-H100-018 |
| Accessory | HDMI 2.0 Premium Cable 3m | CBL-H300-030 |
| Video (Optional) | Wireless presentation system, 2 to 1 | WPS-QPM01 |
| Control (Eco Partner) | Network Switch | Netgear |
| Video (Eco Partner) | Camera | Aver |
