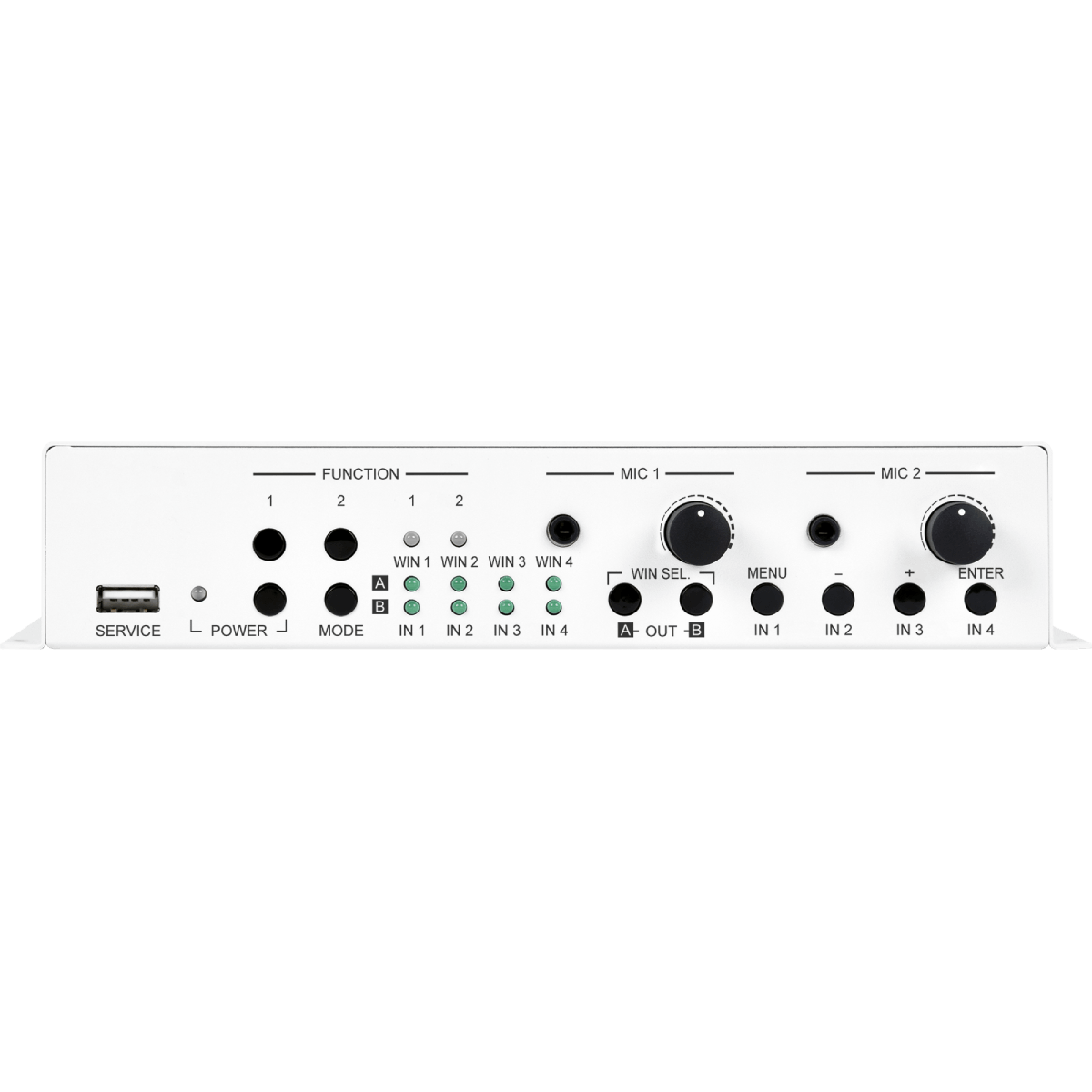

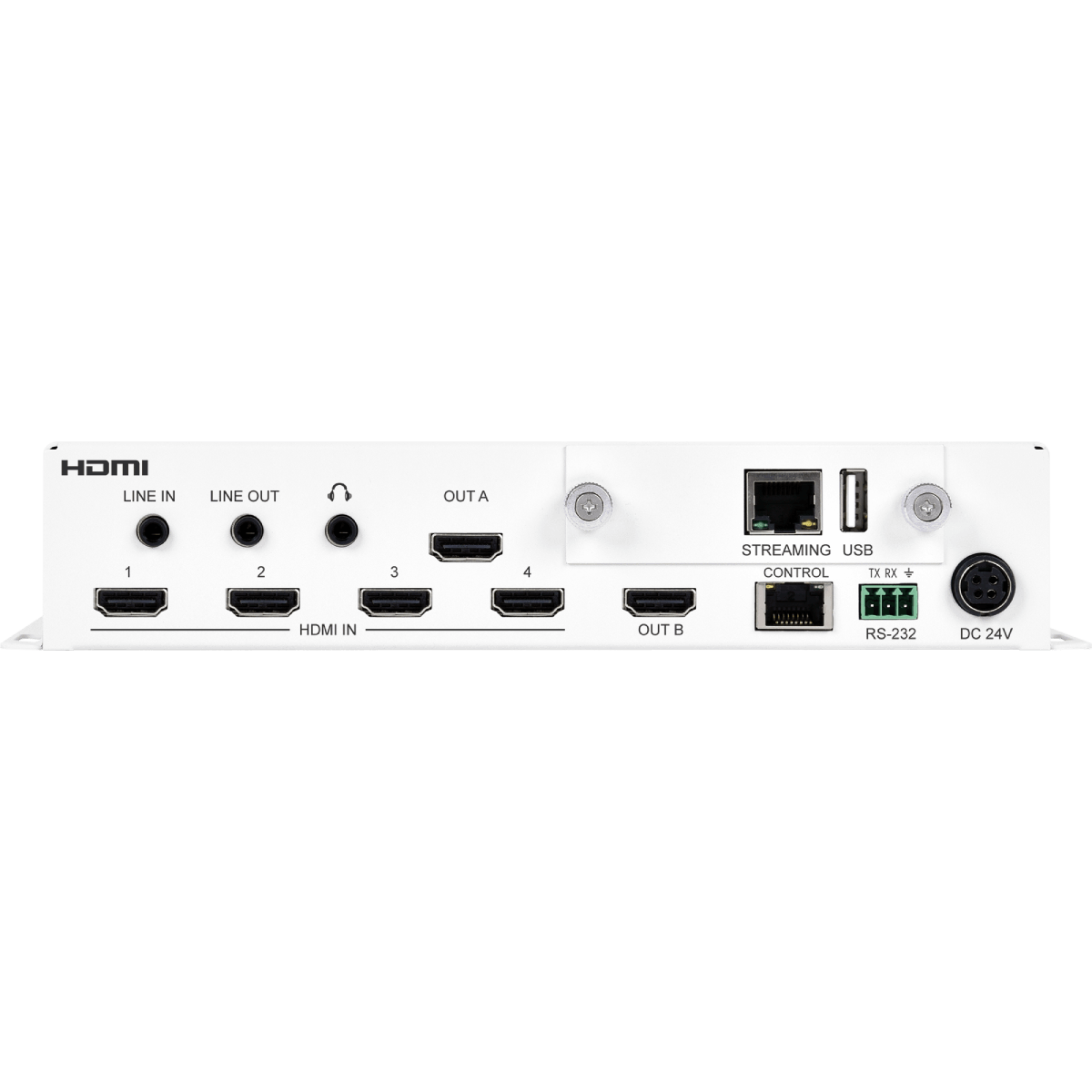

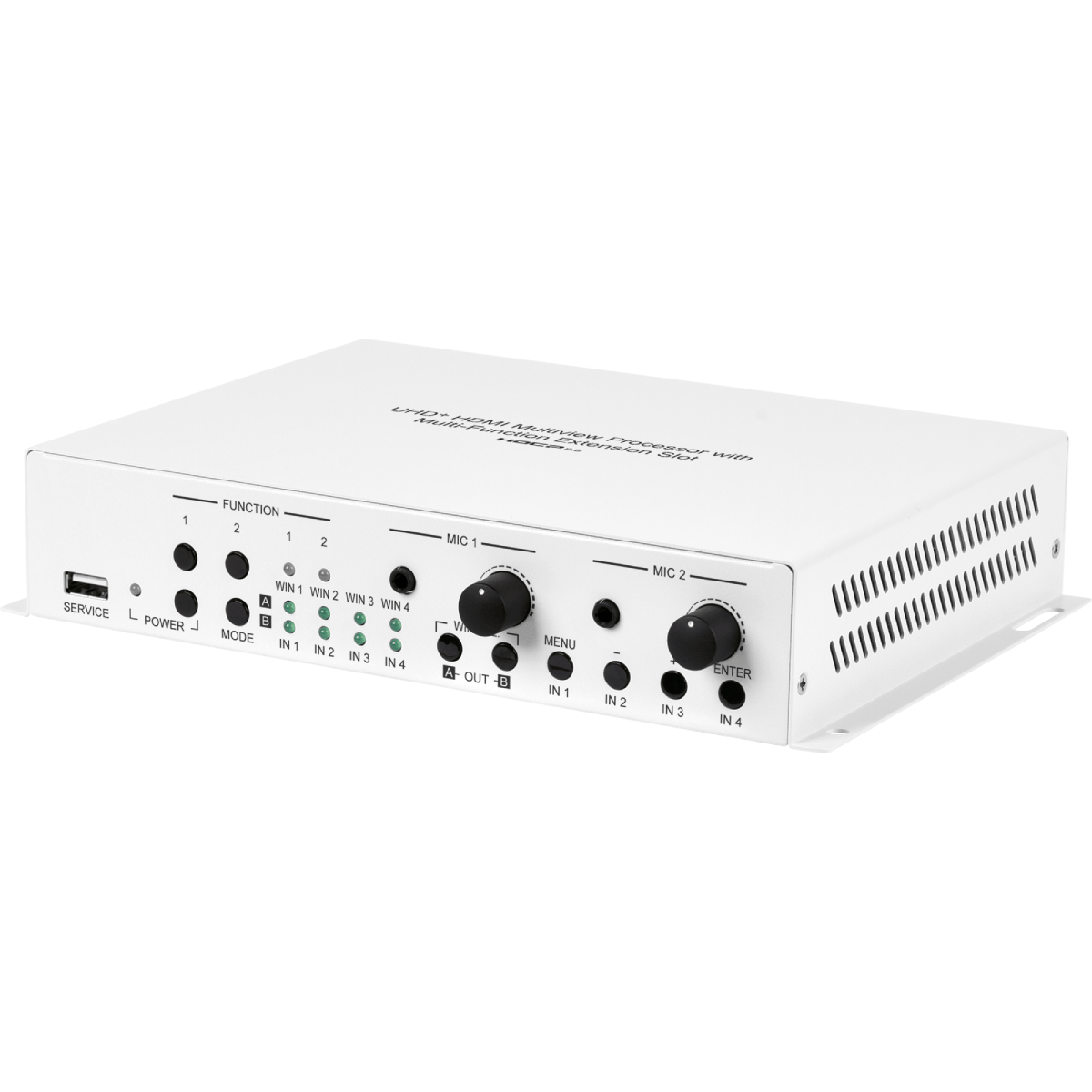

CSC-VPR-3421-W
Multiview Modular Processor
- Serves as a signage platform to couple with CYP modular solutions for multiple ProAV purposes
- HDMI inputs and outputs with 18Gbps (600MHz) 4K UHD support
- Seamless switching (no loss of sync to display) when switching sources in 4x2 matrix mode
- Supports PiP (Picture-in-Picture), PoP, quad mode display options with independent audio source selection
- Supports the ability to store a multi-window arrangement as a preset that can be recalled later
- EDID management
- Uploadable and freely positioned graphic logo support
- Supports easy adjustment of window size, position and settings in the PiP windowing mode via the WebGUI
- Controllable via front panel buttons, WebGUI, Telnet, RS-232
SDM-S100E
H.264/265 Live Video Streaming and Recording Module Card
The SDM-S100E module card provides high performance of H.264/265 live video streaming and recording, which transmits 4K30 video signal over standard Gigabit Ethernet. Video output resolution can be up to 4K30; it is a standard quality for streaming. The unit supports RTSP/TCP/UDP/RTMP protocols. All video content is encoded and streamed with minimal latency, making it ideal for live streaming on a variety of popular platforms or within the local network. The video may also be recorded locally (via USB thumb drive) or to a local network drive while it is being streamed.
SDM-S301E
H.264/265 Live Video Streaming and Recording Module Card
SDM-S301E is a reliable, high-performance H.264/265 Live Video Streaming and Recording module card that transmits 4K60 video signal over standard Gigabit Ethernet. Video output can be up to 4K60 for better quality for streaming. Streaming A/V can be compatible with RTSP/TCP/UDP/RTMP and be streamed on YouTube, Facebook and other platforms instantly and easily. All video content is encoded and streamed with minimal latency and high quality ,making it ideal for live streaming events to a variety of popular online streaming services or within the local network. The video may also be recorded locally (via USB thumb drive) or to a local network drive while it is being streamed.
SDM-U320C
4K30 USB-C Video Capture Module Card
The 4K30 USB-C Video Capture Module Card is able to connect to a PC or laptop via USB-C interface for capturing or recording 4K30 video signals. The module design is compatible with CYP module slot, offering flexible options to customers. This module card supports Windows, macOS, and Linux systems.
SDM-E201T
HDBaseT Transmitter Module (4K@60 420 up to 40M)
SDM-E201T is HDBaseT transmitter module card. It is able to transmit HDMI signals from host module device, such as PC, laptop, Blu-ray player and more. Extension distance is up to 40 meters, with resolutions up to 4K@60 via category cable. This module card is compatible with CYP output module platform, CSC-VPR-3421 and other platforms of SDM output module, offering customers great flexibility in different scenarios. Also, this module card can be used with SDM-E201R or other HDBaseT receivers with category interface for signal extension.
SDM-E301TR
HDBaseT Transceiver Module (4K@60 444 up to 40M)
This HDBaseT Transceiver Module uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio via a single run of Cat. 5e/6/7 cable over distances of up to 40 meters. Every Transceiver can be configured to function as either a transmitter or a receiver, enhancing the flexibility of any installation. This extender complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. The module's design is compatible with a variety of products that have a standard CYP Module Slot for input or outputting signals, offering increased workability to customers.
SDM-P301TR-C
4K60 AV over IP Transceiver Module
This AV over IP Transceiver Module is designed for high-quality, IP routable, AV extension up to 4K@60 4:4:4 with minimum latency. The use of 10-Gigabit Ethernet ports, and Cat.6A cable allows transmission of the video signal up to 100m. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode. When combined with the optional IP Master Controller or control software, the functionality of the transceiver expands exponentially. Multiple transmitters and receivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations. Advanced control such as firmware update can also be performed conveniently through the optional IP Master Controller or control software. The module’s design is compatible with a variety of products that have a standard CYP Module Slot, offering increased flexibility to customers.
SDM-P301TR-F
4K60 AV over IP Transceiver Module
This AV over IP Transceiver Module is designed for high-quality, IP routable, AV extension up to 4K@60 4:4:4 with minimum latency. Every Transceiver is capable of simultaneous bi-directional AV extension, enhancing the flexibility of any installation. The use of interchangeable, field replaceable, SFP+ modules allows for transmission distances of up to 120km (Maximum transmission distance depends on the SFP+ modules used).
SDM-I301HS
4K60 HDMI to 12G-SDI Transmitter Module
This 4K60 HDMI to 12G-SDI Transmitter Module allows HDMI signals up to 4K60 to be converted for use in native 12G-SDI video systems. This makes it easier for professionals to integrate and distribute non-HDCP HDMI signals from both consumer and prosumer video equipment, such as video cameras and laptops. The module's design is compatible with a variety of products that have a standard CYP Module Slot, offering increased flexibility to customers.
